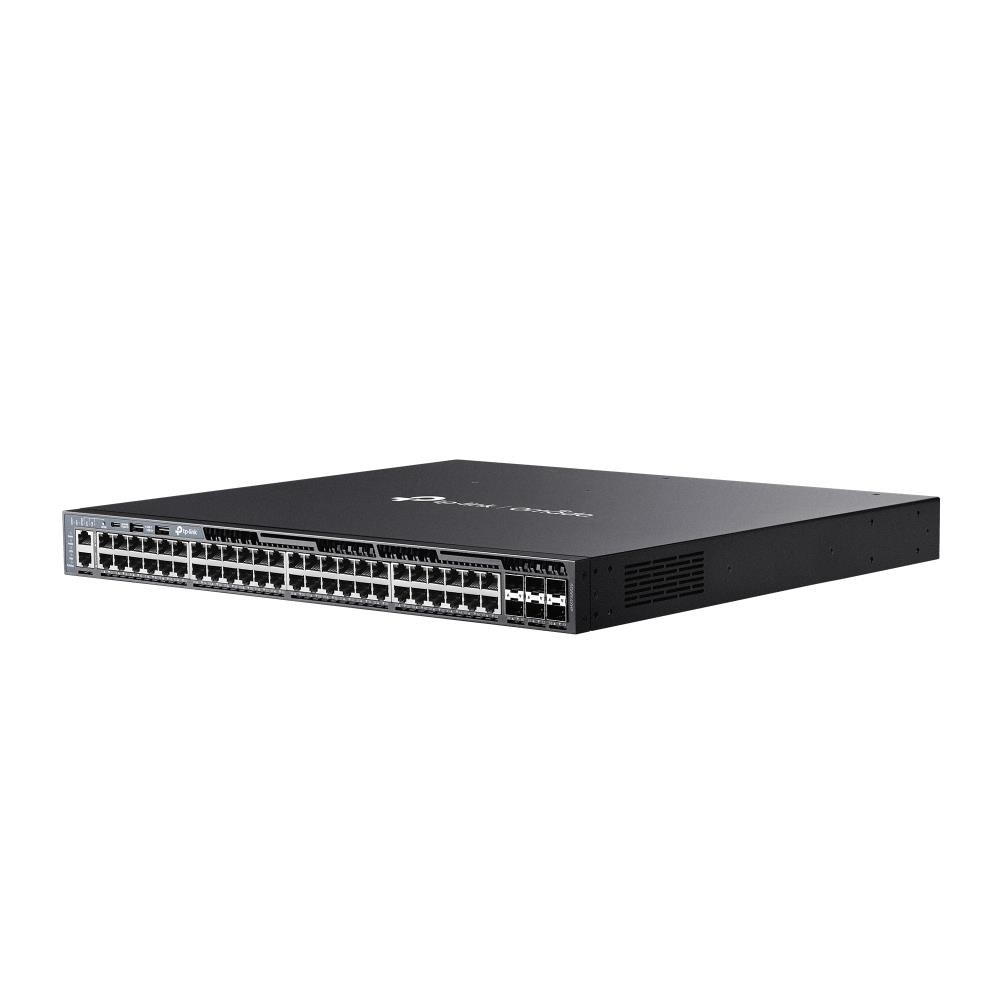

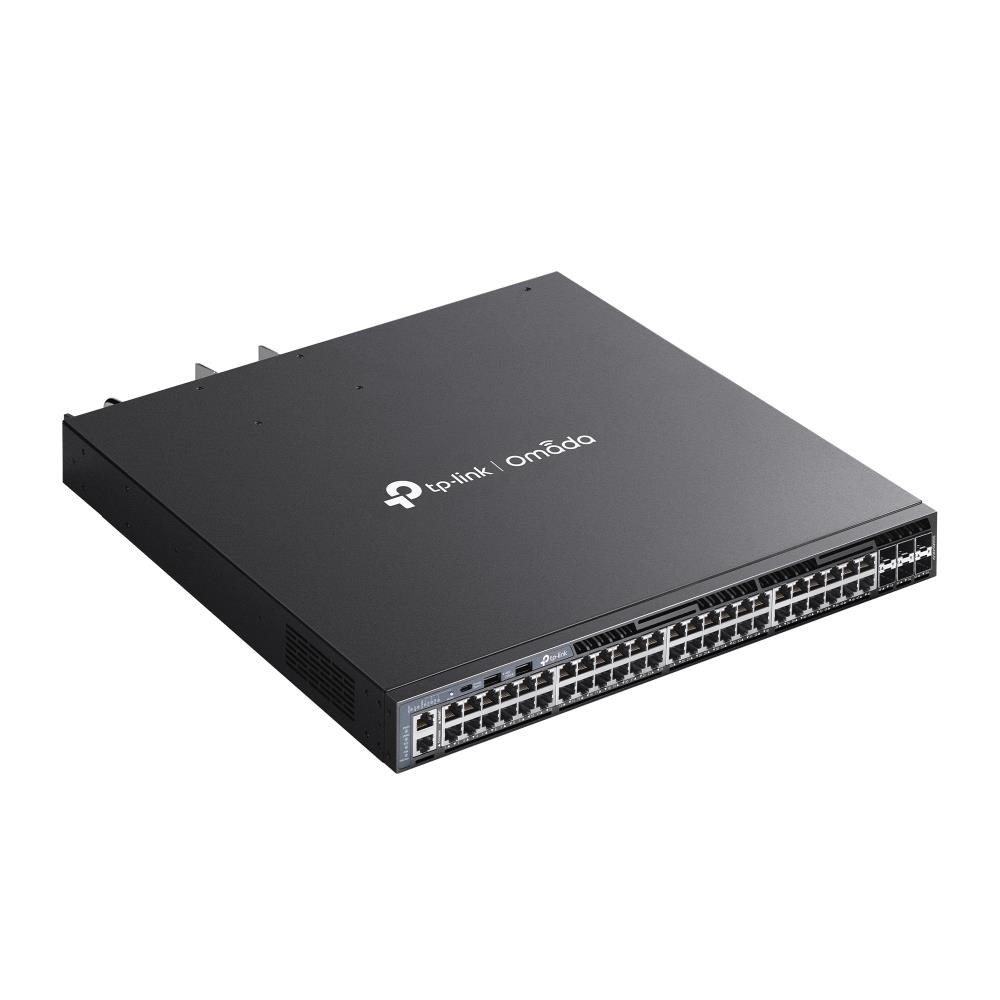

TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
Popis a parametry
TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
TP-Link OMADA switch SG6654XHP
Omada 48portový gigabitový stohovatelný L3 řízený switch PoE+ se 6x 10G sloty
- 48× Gigabit RJ45 PoE+ porty
- 6× 10 Gbps SFP+ sloty
- Celkový budget PoE až 1440 W*
- Fyzické stohování pro vestavěnou redundanci a výkon
- Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Bezpečnostní strategie: ACL, Port Security, DoS Defend, 802.1X
- Vysoce dostupné se dvěma napájecími zdroji*, VRRP a ERPS
- Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
- Samostatná správa přes web, CLI, SNMP a RMON
Více informací o TP-Link PoE technologii >
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-l3-l2-managed/sg6654xhp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 48× 10/100/1000 Mbps PoE+ RJ45 Ports • 6× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |

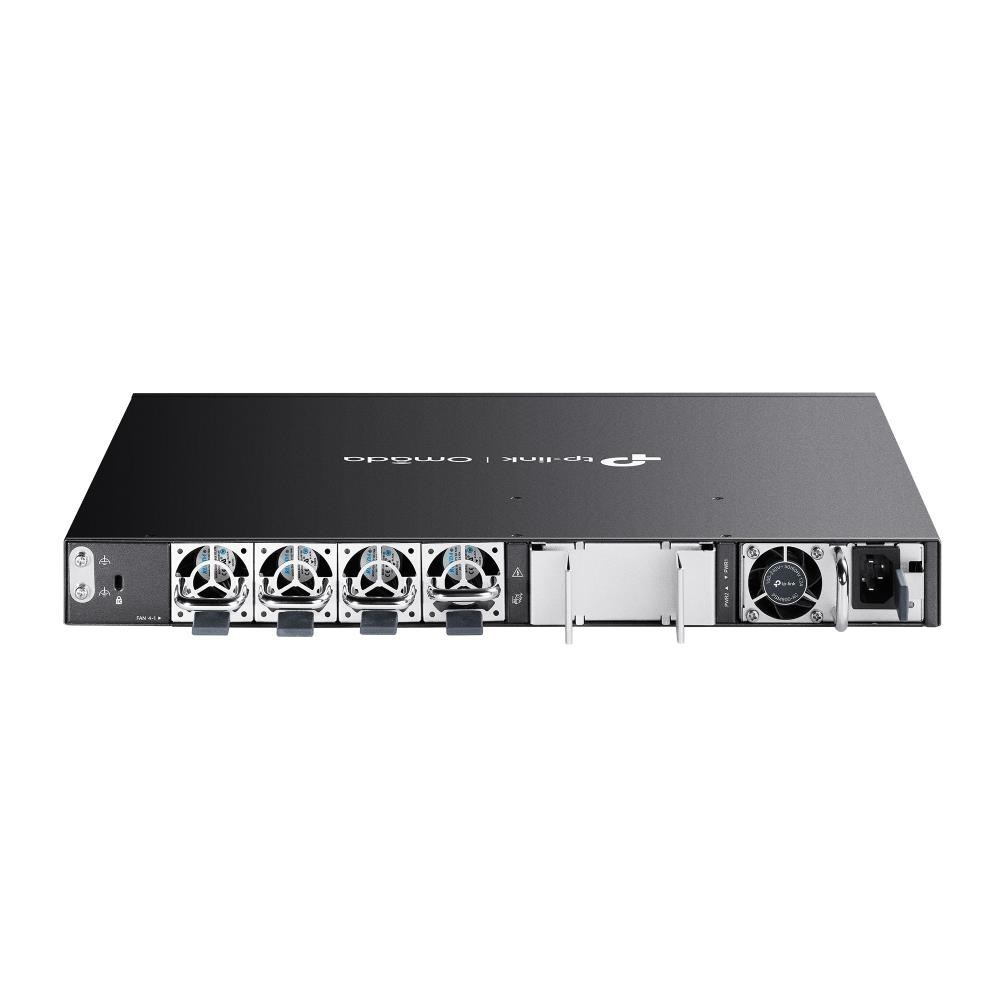

| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz) **Shipping with one PSM900-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 48 Ports, up to 30 W per port • PoE Power Budget: up to 1440 W* *The total PoE budget varies with the power supply modules. |
| Dimensions ( W x D x H ) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | • 67.24 W (110 V/60 Hz) (With no PD connected) • 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| Max Heat Dissipation | • 229.29 BTU/hr (110 V/60 Hz) (With no PD connected) • 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| PERFORMANCE | |
| Switching Capacity | 216 Gbps per Unit |
| Stacking | • Stacking Number: 8 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 120 Gbps (6 stack ports) |
| Packet Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 256, IPv6: Max 256 • Static Routing - Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: - Max 8K IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE |
| OTHERS | |
| Package Contents | • SG6654XHP Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Provedení
Rack mounted 19"
Technologie
Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
Vlastnosti switche
Rozšiřitelnost
Ventilátor
Ano
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Funkce
Stohovatelnost
Funkce
L3
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Počet portů LAN
48
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
54
Počet SFP+ portů
6
PoE budget (W)
1440
Počet PoE+ portů
48
