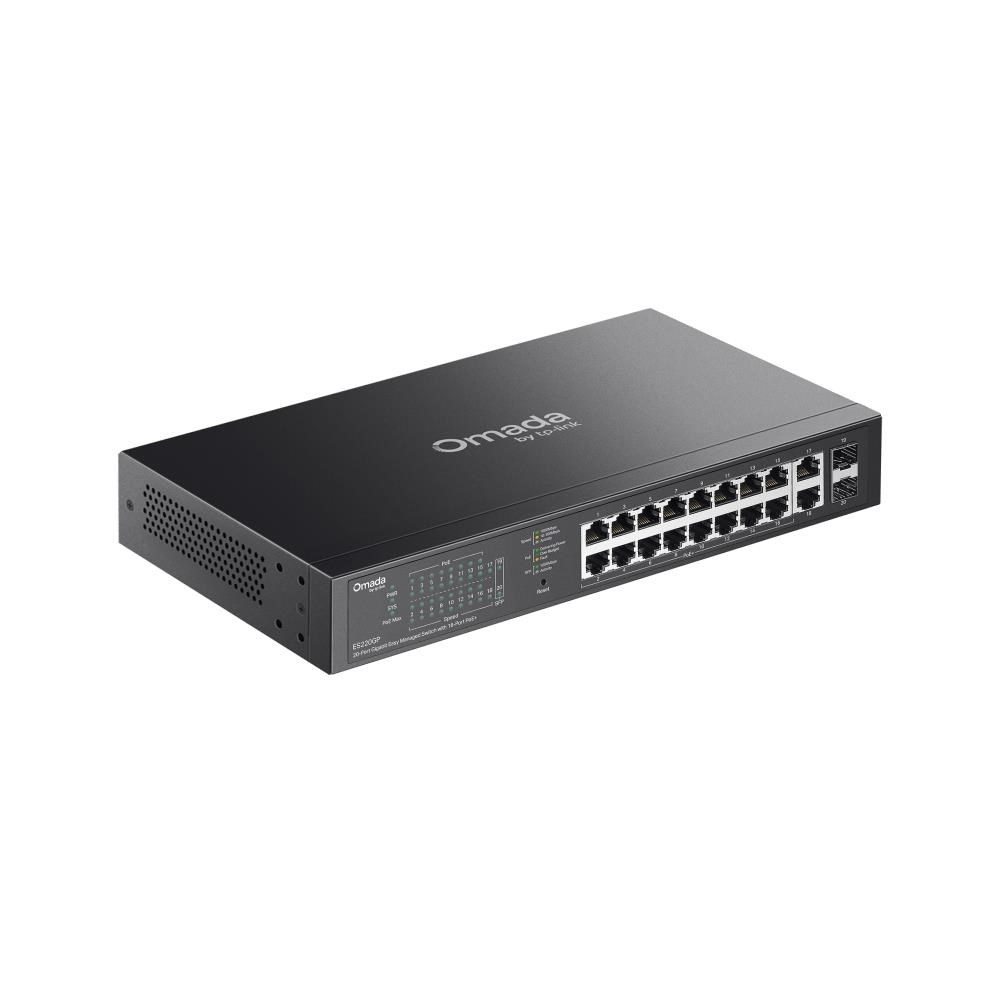

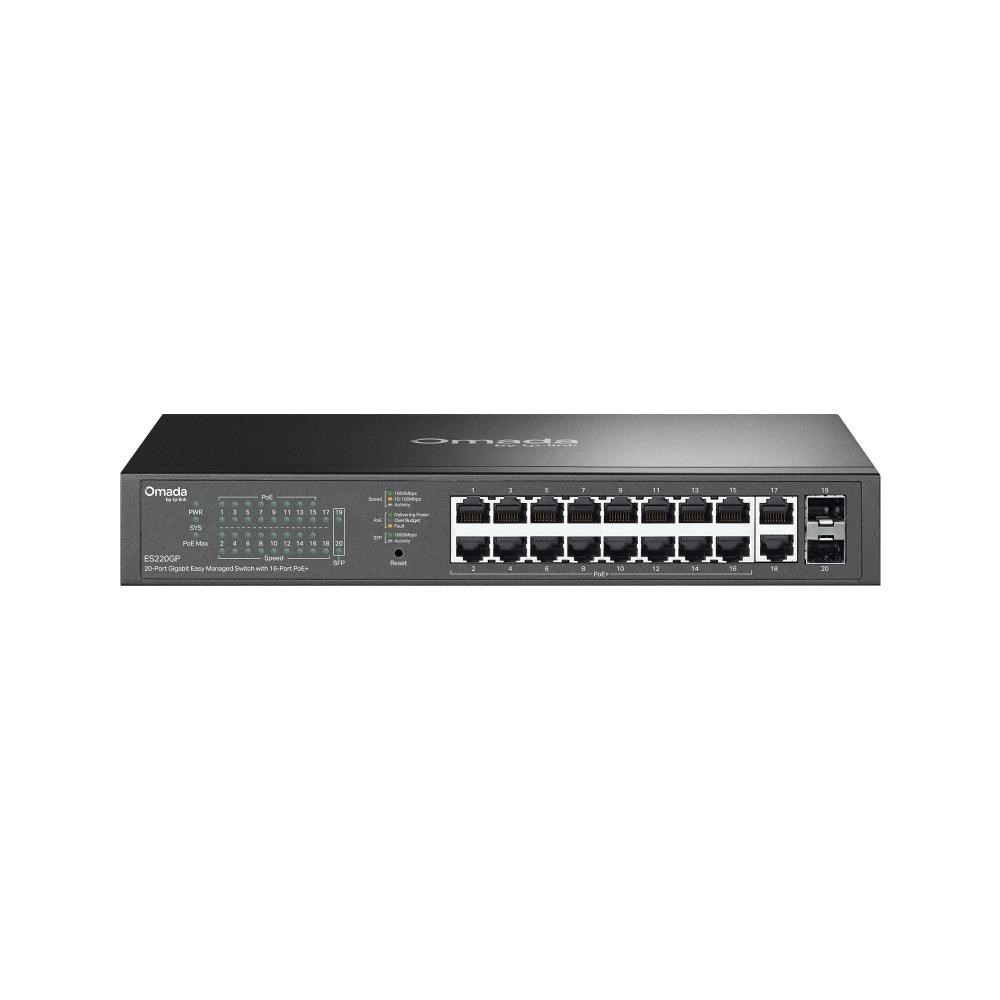

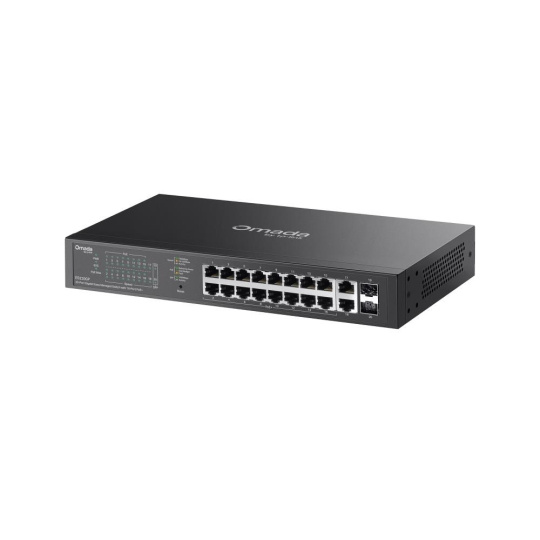

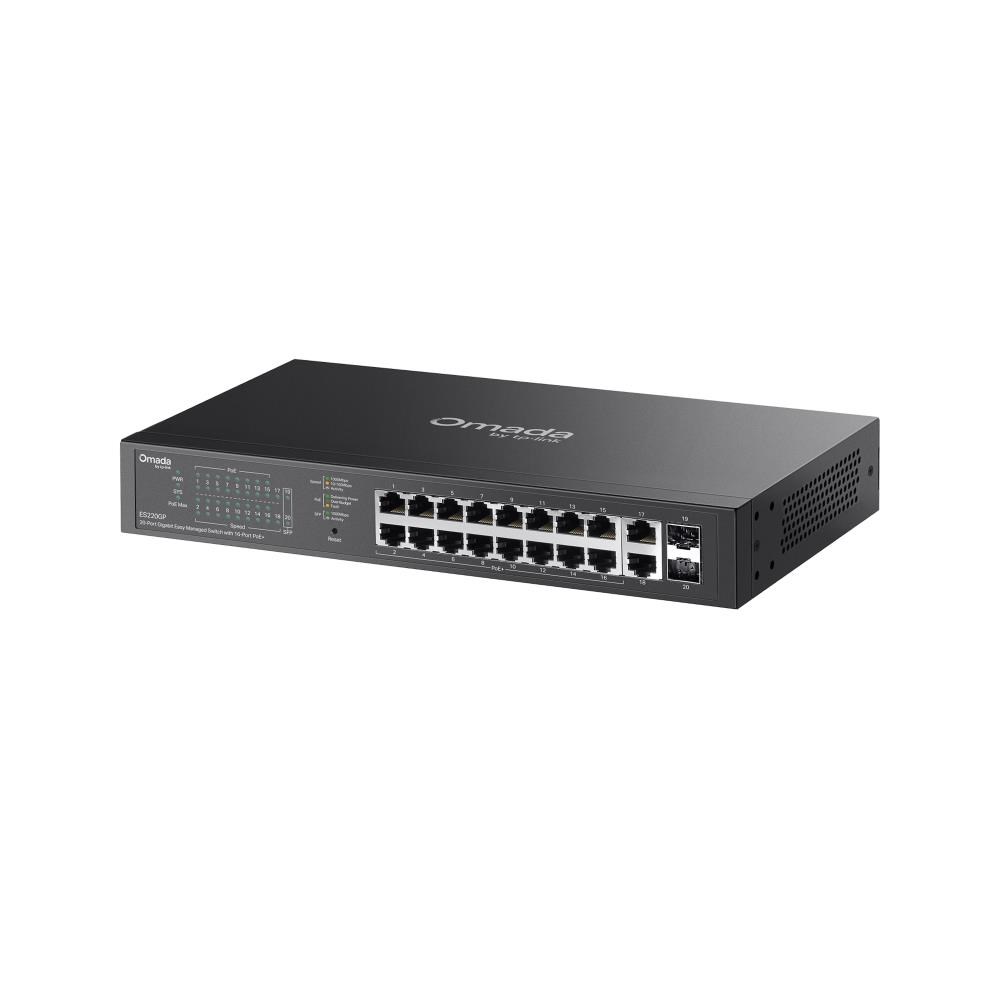

TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)

Name: TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)
Brand: TP-link
SKU: 324518
Price: 5401 CZK
Availability: InStock

-17%

Kód: 324518

EAN: 1210002609746

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)

ParametryPorovnání

Provedení

Rack mounted 19"

Technologie

Gigabit ethernet + Gigabit optika

Technologie

Gigabit Ethernet 1000Mbps

Management

Web

Ventilátor

Ano

Funkce

PoE (Power over ethernet)

Funkce

QoS (Quality of service)

Funkce

VLAN (virtual local area network)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Podporované standardy PoE

802.3af

Podporované standardy PoE

802.3at

Počet portů LAN

Maximální počet portů

PoE budget (W)

150

Počet PoE+ portů

TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)

HARDWARE FEATURES
Interface	• 18× 10/100/1000 Mbps PoE+ RJ45 Ports (16× 802.3af/at-compliant PoE+) • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	Desktop/Rackmount
Physical Security Lock	?

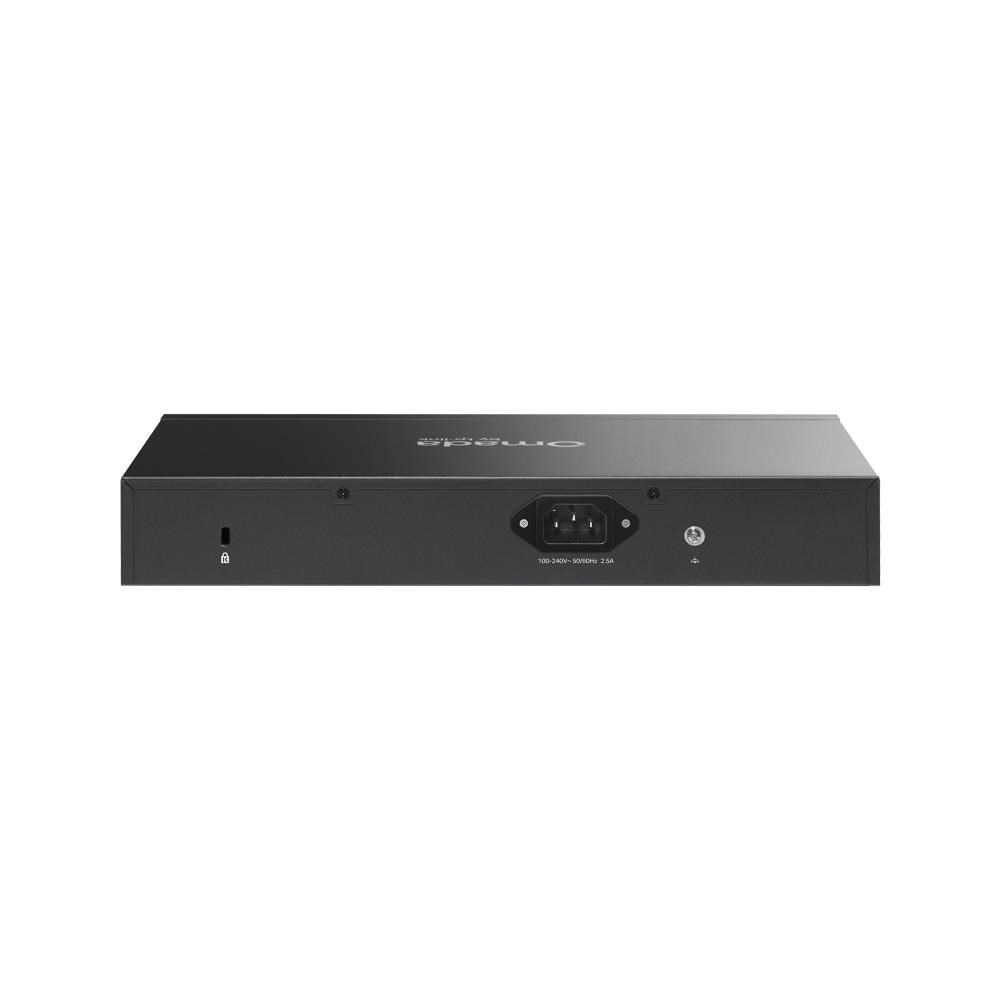

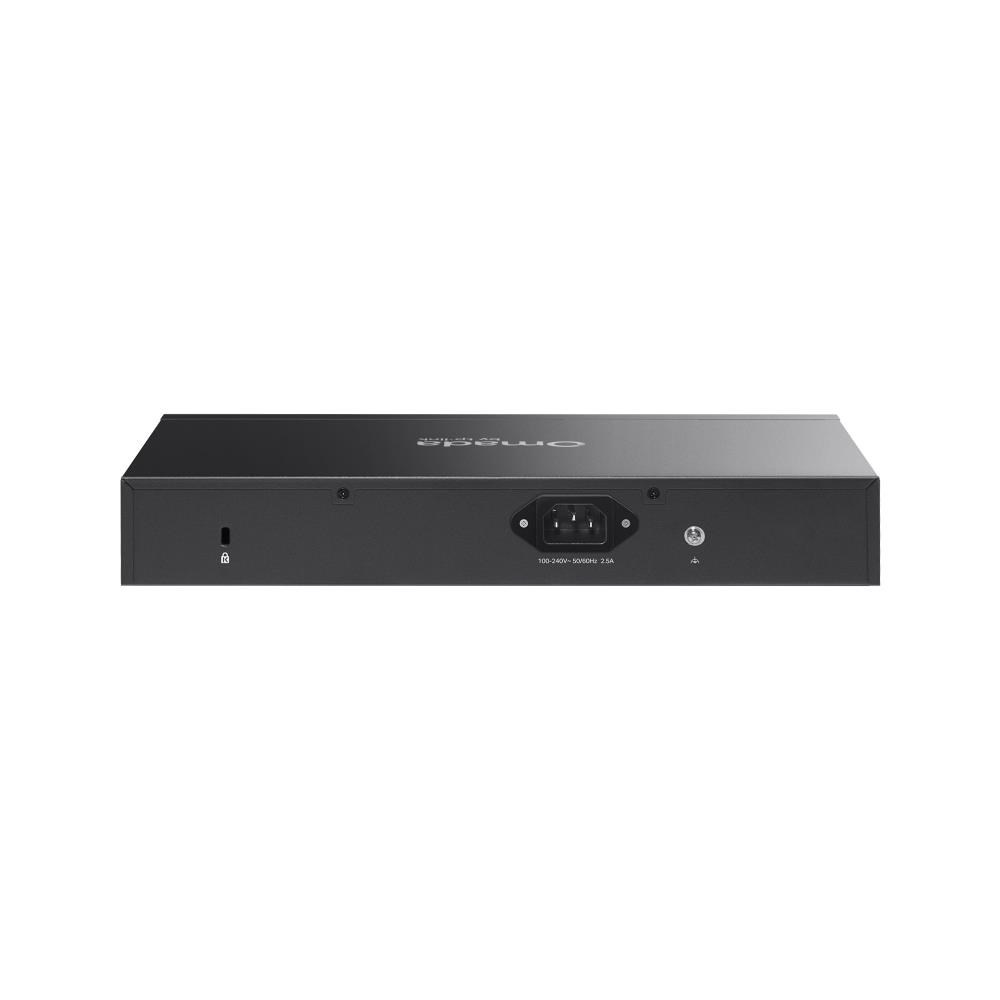

Power Supply	100–240V AC, 50/60Hz 2.5A
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Surge Protection	±6 kV
PERFORMANCE
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES220GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
Environment	• Operating Temperature: -5?~40? (23°F~104°F) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)

TP-Link OMADA switch ES220GP (18xGbE,2xSFP,16xPoE+,150W)

TP-Link OMADA switch ES220GP

Omada 20portový gigabitový easy managed switch s 16 porty PoE+
