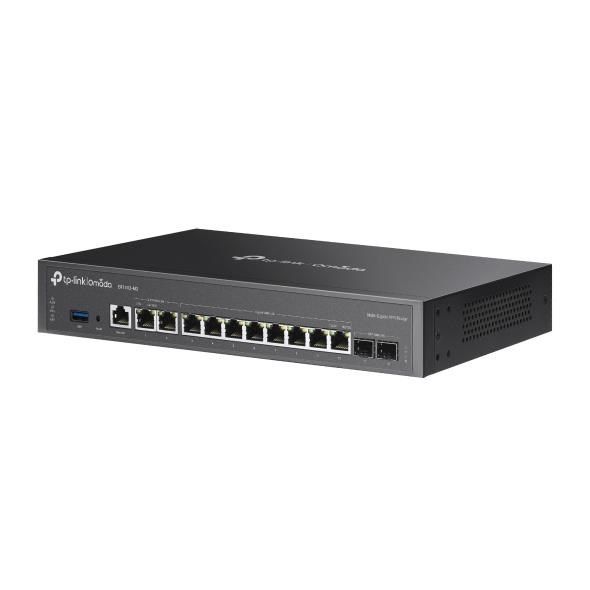

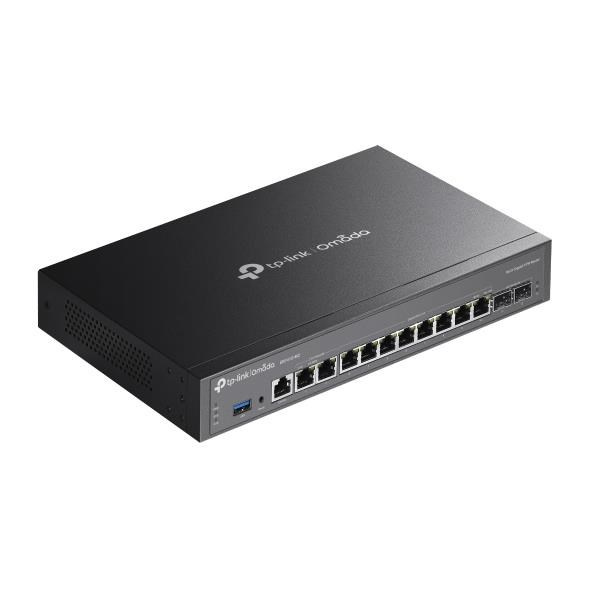

TP-Link ER7412-M2 OMADA VPN router (2xSFP WAN/LAN,2x2,5GbELAN/WAN,8xGbELAN,1xUSB3.0,fanless)
Popis a parametry
TP-Link ER7412-M2 OMADA VPN router (2xSFP WAN/LAN,2x2,5GbELAN/WAN,8xGbELAN,1xUSB3.0,fanless)
TP-Link ER7412-M2
Omada Multi-Gigabit VPN Router
- Čtyřjádrový procesor @2.0GHz
- 2× 2,5G RJ45 WAN/LAN porty
- 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
- 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
- Až 11 WAN portů
- Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralizovaná správa cloudu přes web nebo aplikaci Omada
- Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/
Technické specifikace
| SECURITY | |
| Access Control | • Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL |
| Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| Interface | • 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | • Desktop • Rackmountable |
| Max Power Consumption | 18.5W (With USB 3.0 connected) |
| PERFORMANCE | |
| GRE | • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps |
| WireGuard VPN | 771.6 Mbps |
| Concurrent Session | 1,000,000 |
| New Sessions /Second | 7 |
| NAT (Static IP) | 2345.71 Mbps / 2351.22 Mbps |
| NAT(DHCP) | 2353.41 Mbps / 2353.40 Mbps |
| NAT(PPPoE) | 2336.52 Mbps / 2336.08 Mbps |
| NAT (L2TP) | 1937.53 Mbps / 1761.82 Mbps |
| NAT (PPTP) | 1757.54 Mbps / 2011.33 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps |
| OpenVPN | UDP: 266.2 Mbps |
| L2TP VPN Throughput | • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps |
| PPTP VPN Throughput | • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps |
| SSL VPN Throughput | 263.1 Mbps |
| 66 Byte Packet forwarding rate | 1833 Mbps / 1835 Mbps |
| 1,518 Byte Packet forwarding rate | 2461 Mbps / 2461 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 80 Tunnels |
| IPsec VPN | • 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
| OTHERS | |
| Certification | CE, FCC |
| Package Contents | • ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
.
ParametryPorovnání
USB port
Ano
Gigabit ethernet
Ano
Další vlastnosti
Management
Další vlastnosti
FTP server
Další vlastnosti
Firewall
Další vlastnosti
Podpora IPv6
Další vlastnosti
VLAN
Funkce
VPN
Funkce
Router
Počet portů LAN
10
Počet SFP portů
2
TP-Link ER7412-M2 OMADA VPN router (2xSFP WAN/LAN,2x2,5GbELAN/WAN,8xGbELAN,1xUSB3.0,fanless)
