TP-Link ER706W OMADA VPN router (1xSFP WAN/LAN,1xGbEWAN, 4xGbELAN/WAN, 1xUSB3.0)
Popis a parametry
TP-Link ER706W OMADA VPN router (1xSFP WAN/LAN,1xGbEWAN, 4xGbELAN/WAN, 1xUSB3.0)
TP-Link ER706W
Omada AX3000 Gigabitový VPN router
- AX3000 Dual-Band WiFi: Podporuje 2402 Mbps na 5 GHz a 574 Mbps na 2,4 GHz

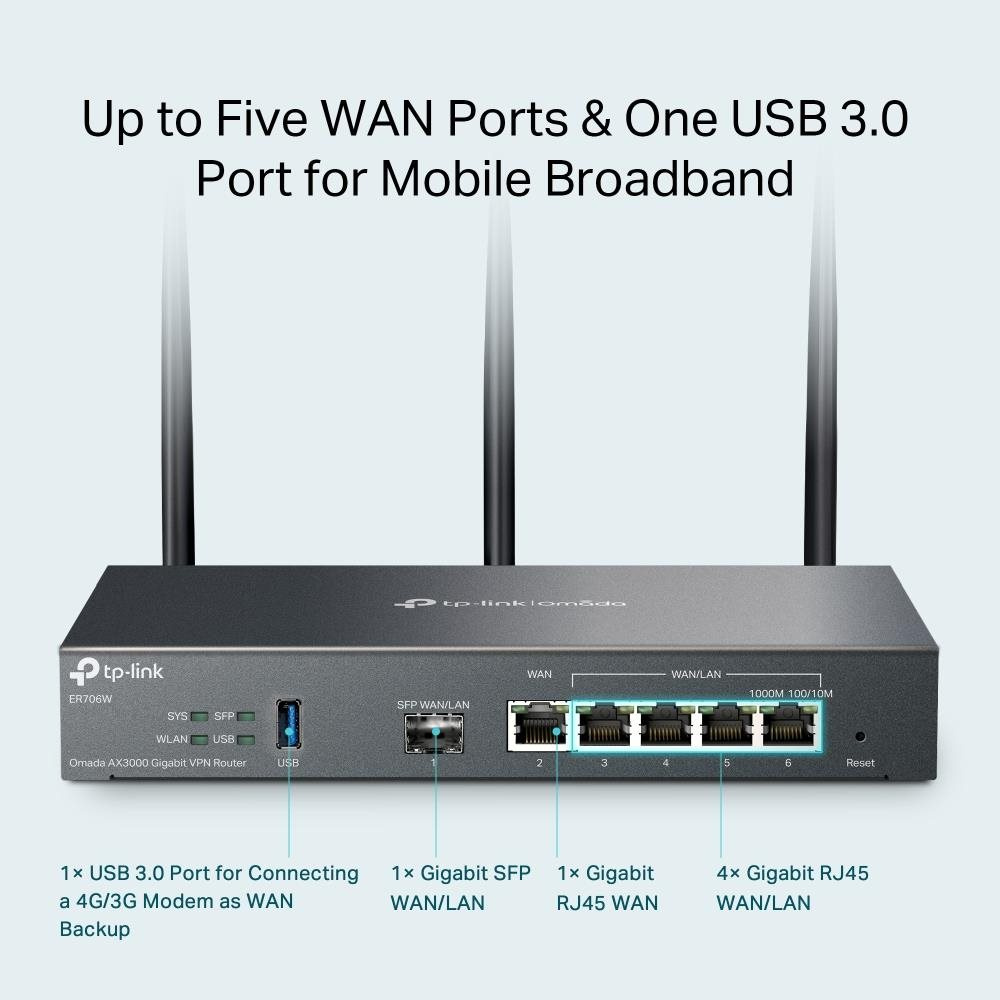

- 6 gigabitových ethernetových portů: 1 gigabitový SFP a 5 gigabitových RJ45 portů poskytují vysokorychlostní kabelové připojení.
- Technologie Omada Mesh: Bezproblémové připojení k EAP, které podporují technologii mesh, ideální pro rozsáhlé scénáře.
- Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
- Zvýšené pokrytí: Trojité externí antény rozšiřují a koncentrují signály Wi-Fi.
- High-Security VPN: Podporuje více protokolů VPN včetně IPSec / SSL / Wireguard / PPTP / L2TP VPN, což uživatelům pomáhá flexibilněji vytvářet vzdálená připojení.
- Bohaté bezpečnostní funkce: Pokročilé zásady brány firewall, obrana DoS, filtrování IP/MAC/URL a další bezpečnostní funkce chrání vaši síť a data.
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er706w/
Technické specifikace
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
| ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| Mounting | Desktop/Wall-mounting |
| Max Power Consumption | • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| PERFORMANCE | |
| GRE | • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps |
| WireGuard VPN | 393.5Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 5,1 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)? • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)? • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER706W • Power Adapter • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
.
ParametryPorovnání
Počet portů LAN
4
USB port
Ano
Typ antény
Odnímatelná
Gigabit ethernet
Ano
Další vlastnosti
VLAN
Další vlastnosti
Podpora IPv6
Další vlastnosti
FTP server
Další vlastnosti
Management
Funkce
Router
Funkce
VPN
Podporované standardy
802.11a
Podporované standardy
802.11ac
Podporované standardy
802.11b
Podporované standardy
802.11g
Podporované standardy
802.11n
Podporované standardy
802.11ax
Počet SFP portů
1
Přenosová rychlost Wi-Fi (Mb/s)
2917 - 4000
Počet portů LAN
4
Počet SFP portů
1
