CBP-2131SAS –

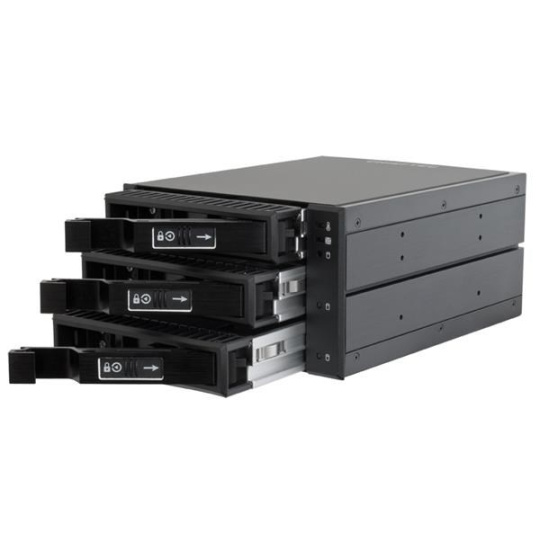

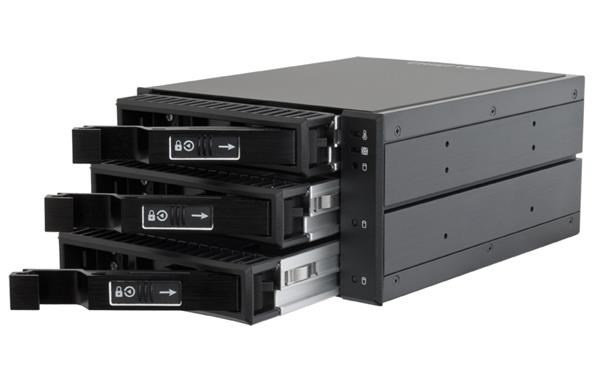

The new backplane CBP-2131SAS sets the standard with the patented anti-vibration design. Like no other backplane makes it suitable for diverse applications. The chassis is made of high quality aluminum and requires only two 5.25" and provides space for three 3.5" or 2.5" hard drives or SSDs. Supports both SATA I/II/III and SAS I/II.
Features:
- Professional Data Backup
- Hot Swap
- Plug & Play compatible
- Lock mechanism with key
- Space saving
Technical Data:
| Interface (HDD/SSD):
| SATA I, SATA II, SATA III, SAS I/II
|
| Dimension (DxWxH):
| 207mm x 146mm x 86mm
|
| Weight:
| 1,09 kg
|
| Form Factor:
| 2x 5,25" bays for 3x SATA/SAS HDDs/SDDs (3,5" or 2,5")
|

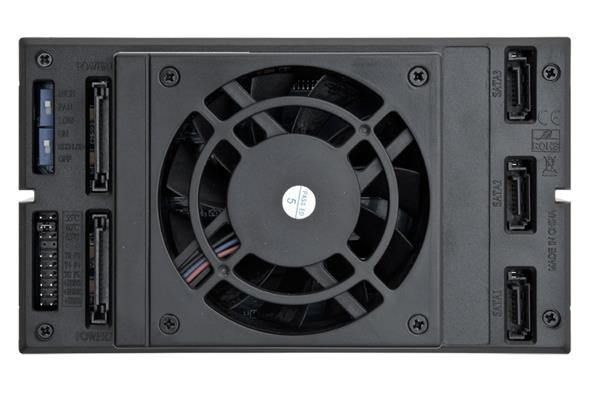

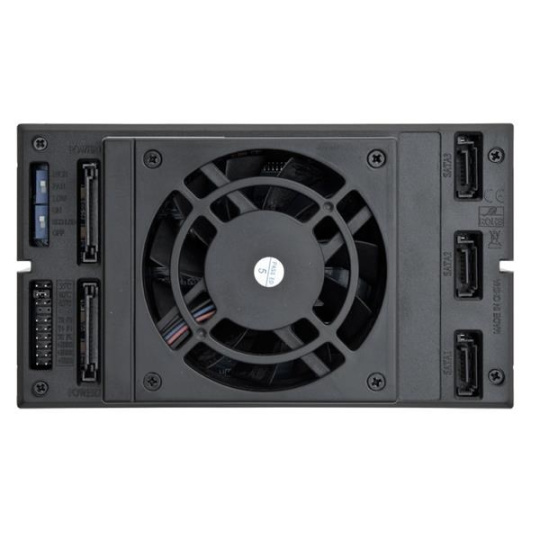

| Cooling:
| 70mm fan
|
| Power Connector:
| 2x SATA
|
| Data Interface (ext.):
| 3 x SATA
|
| Supported Raid-Level:
| No Raid controller is included
|

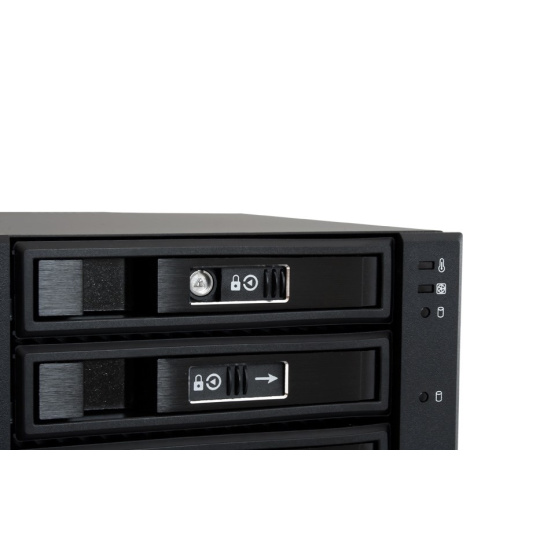

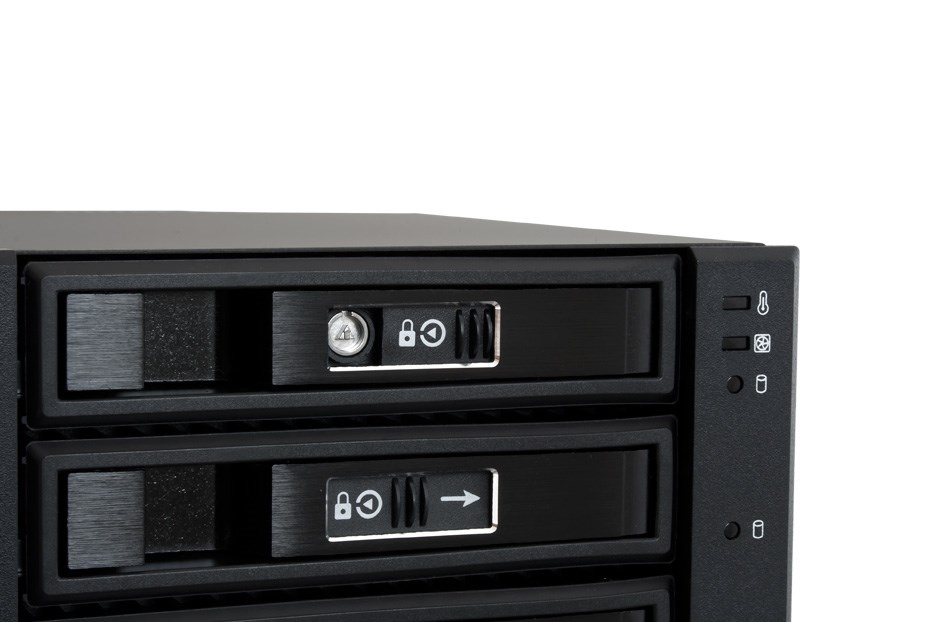

| Special Features:
| Fan Failure detection LED
|
| Reset switch for buzzer alarm
| |
| Overheating LED
| |
| Up to 6Gbps data transfer rate (SATA III / SAS)
| |

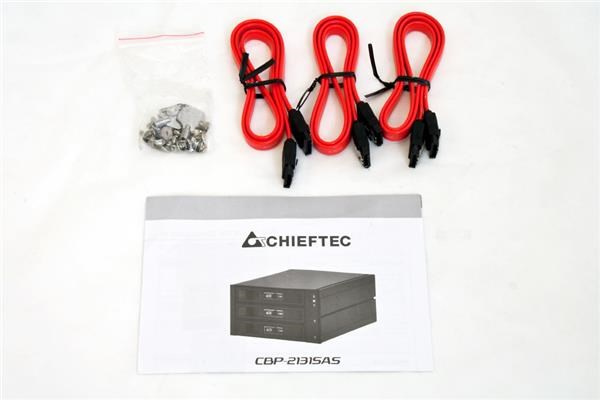

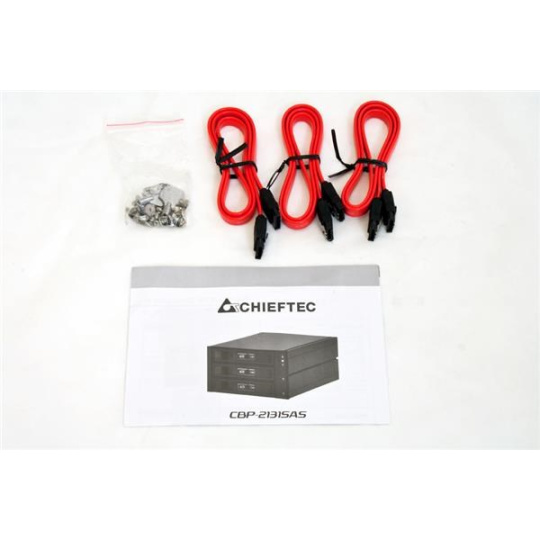

| Scope of delivery:
| Backplane, 3x SATA cable (60cm), set of screws, User manual (engl.)
|
