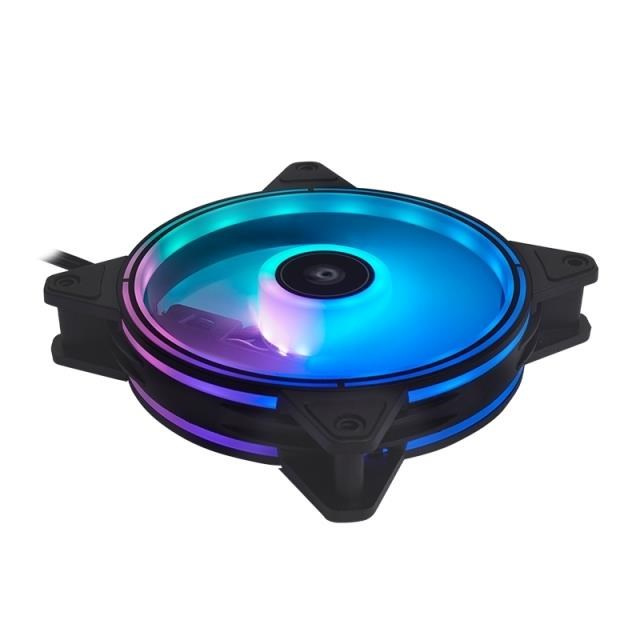

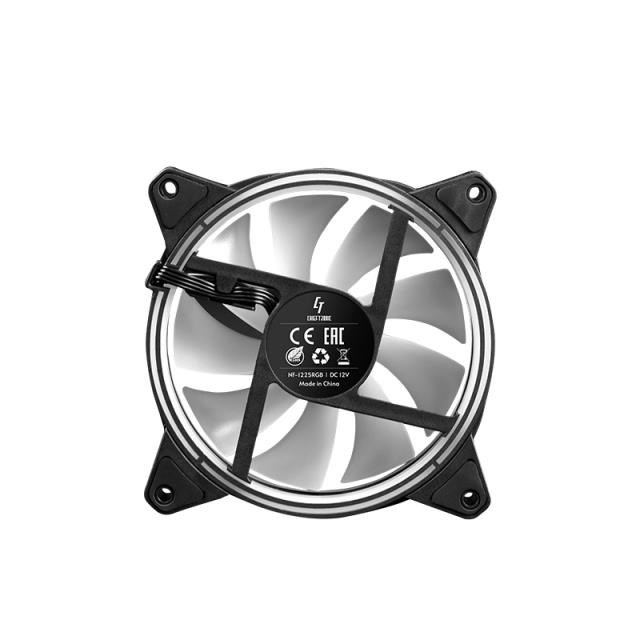

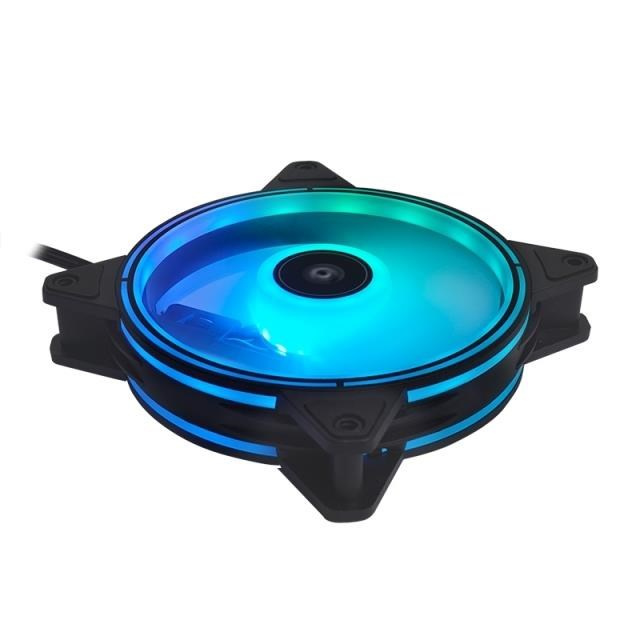

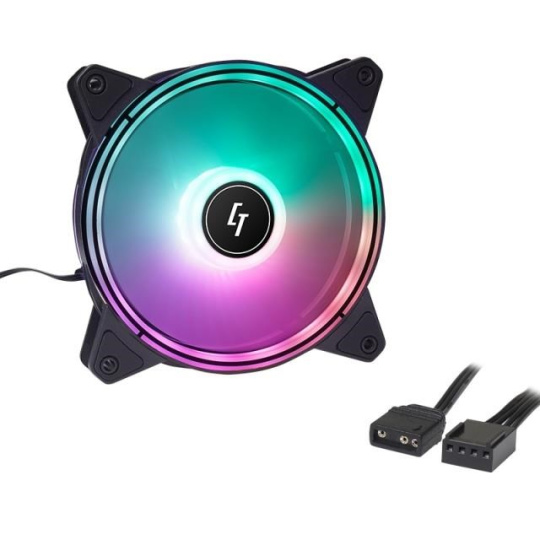

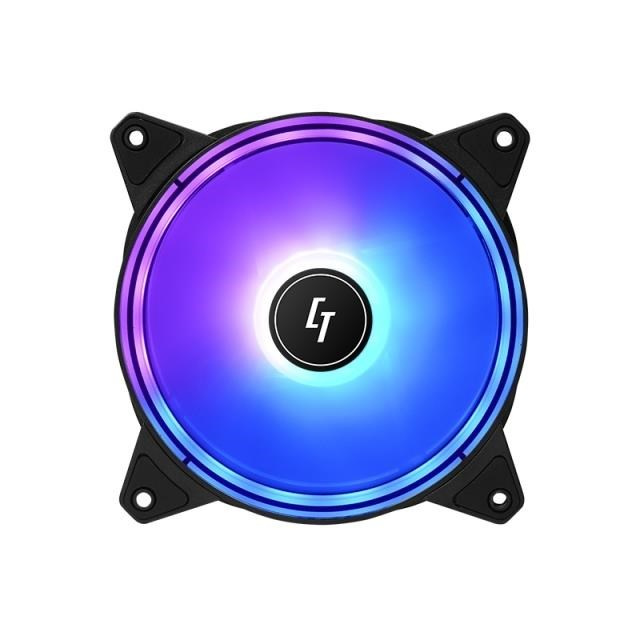

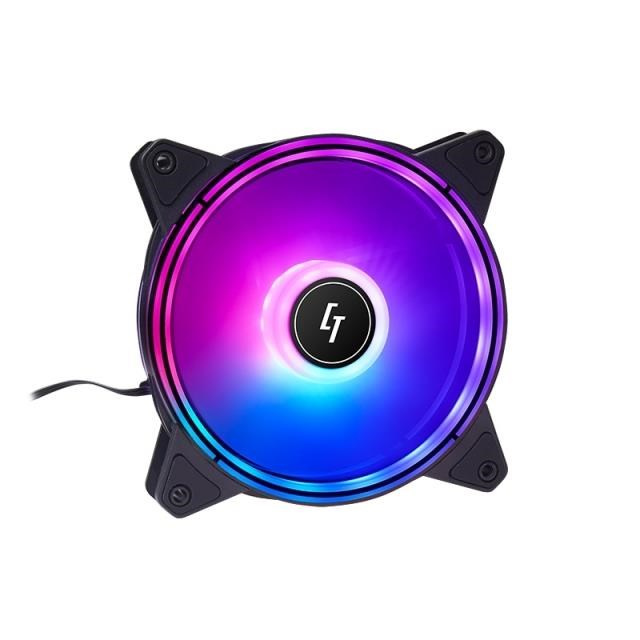

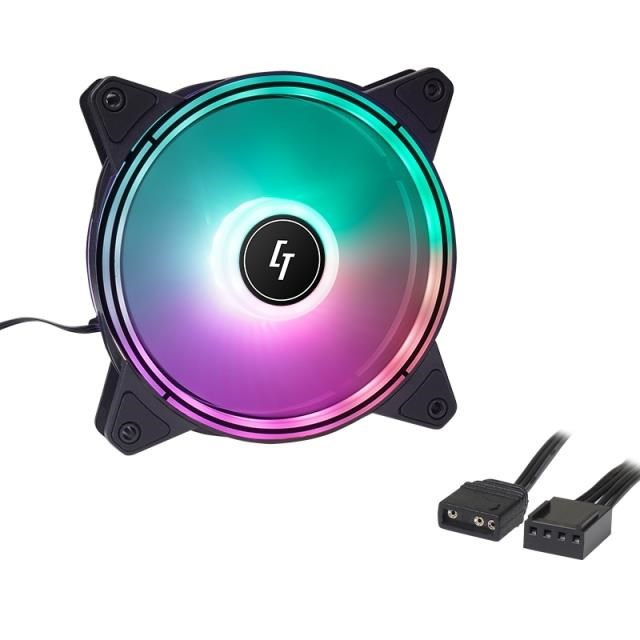

CHIEFTEC RGB větrák NF-3012-RGB, 120x120x25 mm, with 3 pin/ 4pin connector
Popis a parametry
CHIEFTEC RGB větrák NF-3012-RGB, 120x120x25 mm, with 3 pin/ 4pin connector
NF-3012-RGB

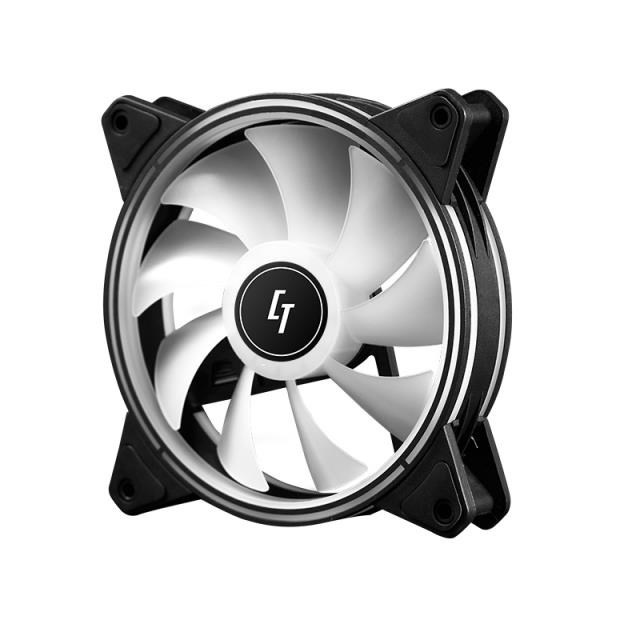

- 9 blade design with enhanced air pressure technology

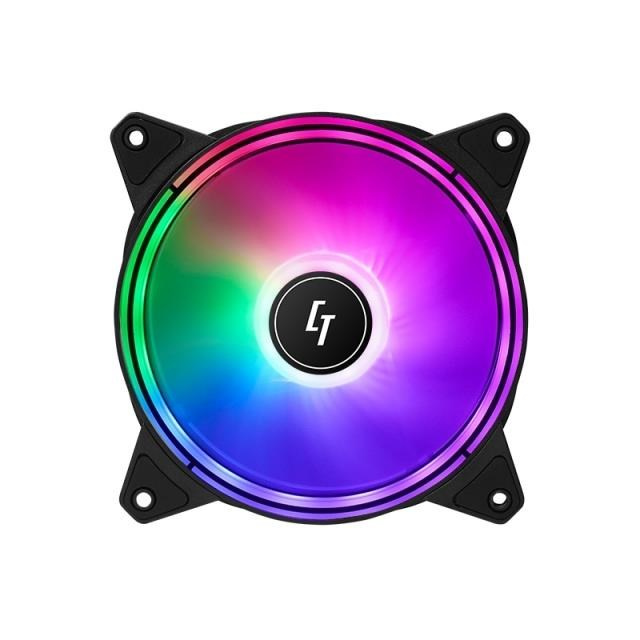

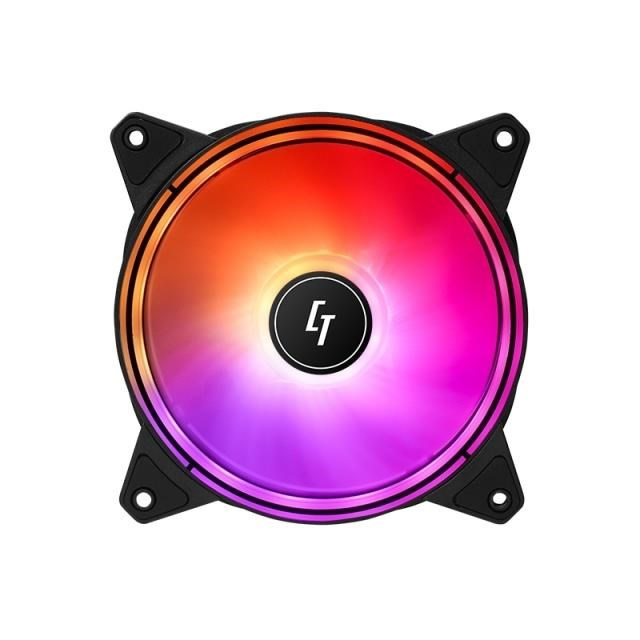

- Dual-Ring setup for perfect illumination inside and out
- 32 addressable LEDs offering complex RGB effects
- 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported
TECHNICAL SPECIFICATIONS
| Model | NOVA Set |
| Article No. | NF-3012-RGB |
| Connectors | Fan: 4 pin PWM ; ARGB: 3 pin |
| Dimension | 120 x 120 x 25mm |
| Bearing Type | Hydraulic |
| LED Type | Addressable RGB (A-RGB) |
| LED Count | 32 pcs (Inner Ring: 16 pcs ; Outer Ring: 16pcs ) |
| Rated Voltage | FAN: DC12V ; LED: DC5V |
| Rated Current | 0.29A (Max: 0.65A) |
| Operating Voltage | 7V -13.2V |
| Fan Speed (RPM) | 1600 RPM ± 10% |
| Air Flow (CFM) | 68 CFM |
| Air Pressure (mmH2O) | 2.2 mmH2O |
| Noise Level (dBA) | 24 dBA (Max: 28) |

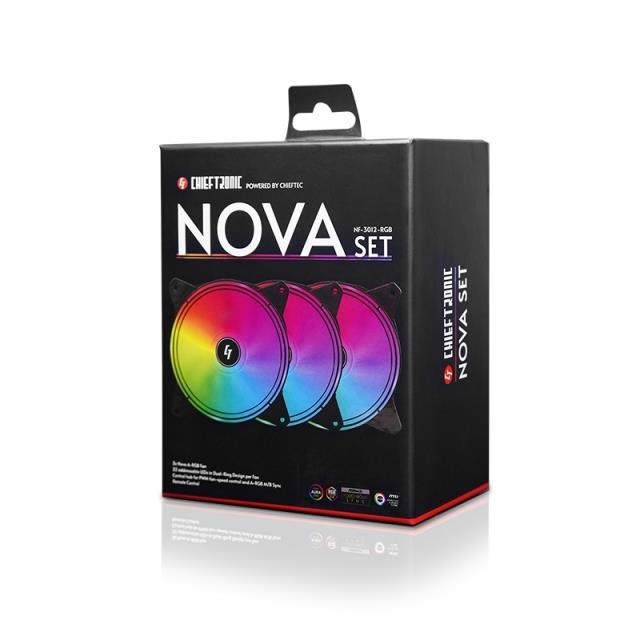

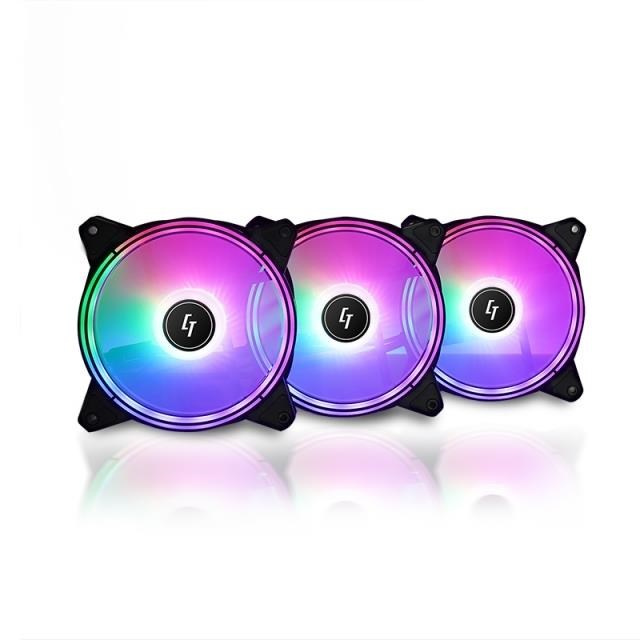

| Scope of delivery | 3x 120mm A-RGB Dual Ring Rainbow fan, 1x Control Hub DF-100 (5x 4PIN PWM fan ports, 6x +5V A-RGB LED ports), |
| RGB Sync Compatibilities | ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION |
| Warranty | 24 Months |
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
RGB
Velikost ventilátoru
120x120
