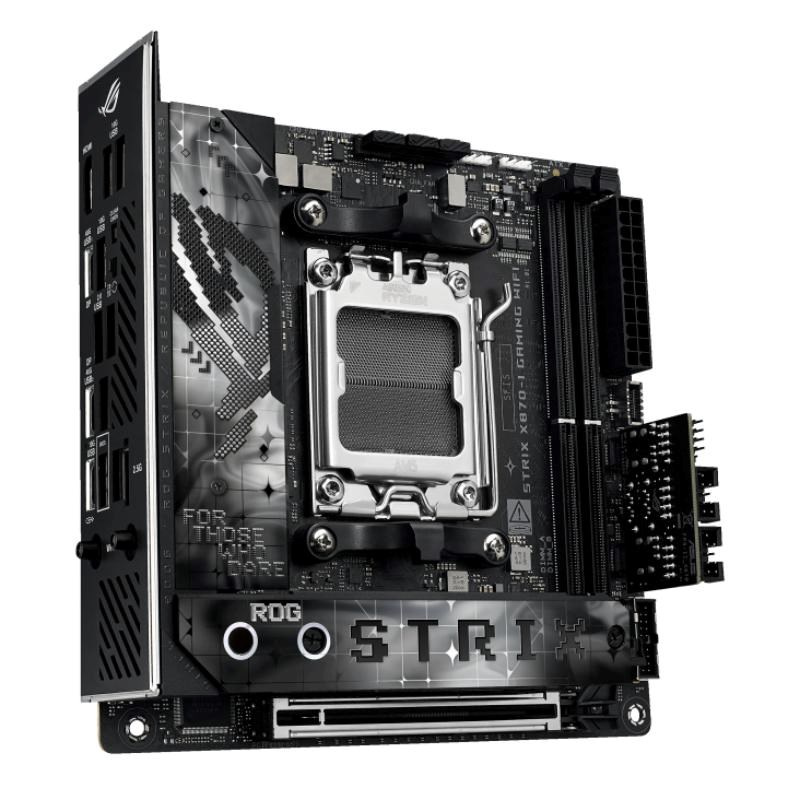

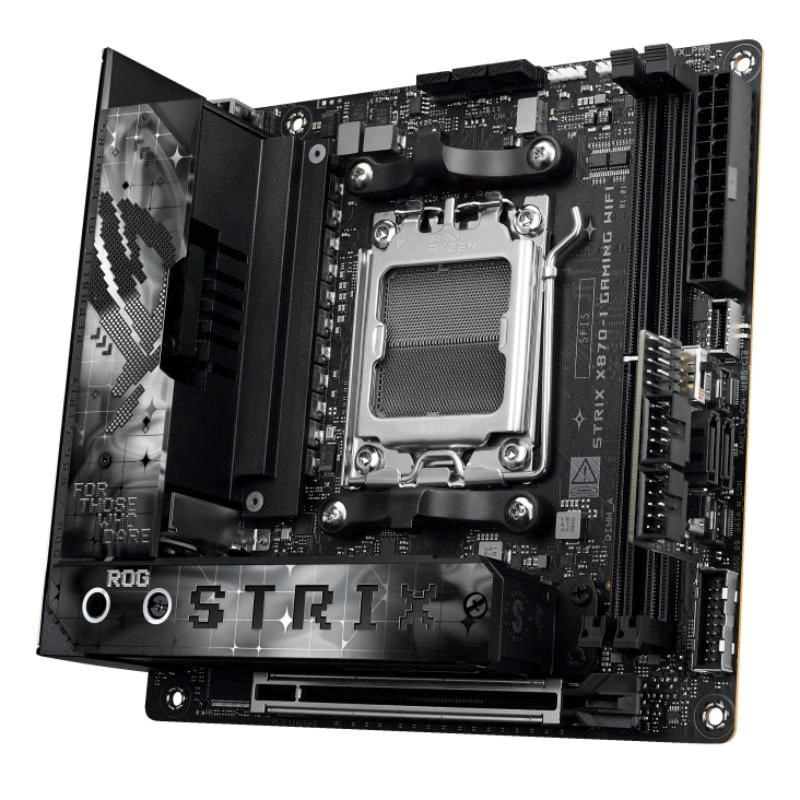

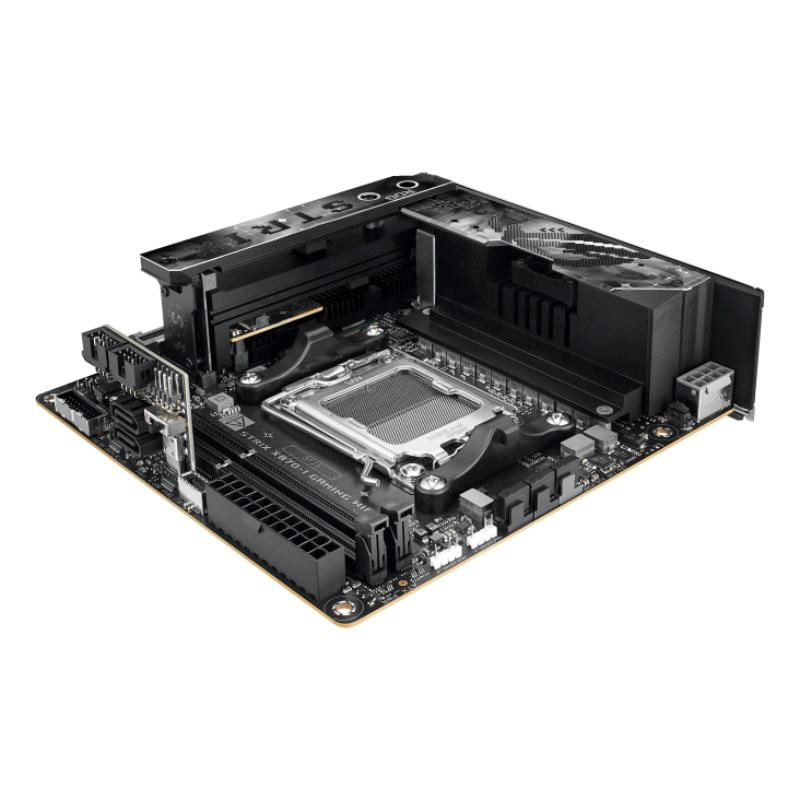

ASUS ROG STRIX X870-I GAMING WIFI
AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870
Memory
2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10, and AMD Ryzen™ 9000 Series Desktop
Processors additionally support RAID 5.
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB
Rear USB (Total 10 ports)
2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* USB Type-C® power delivery output: max. 5V/3A
ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports
Audio
ROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- E3 DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers

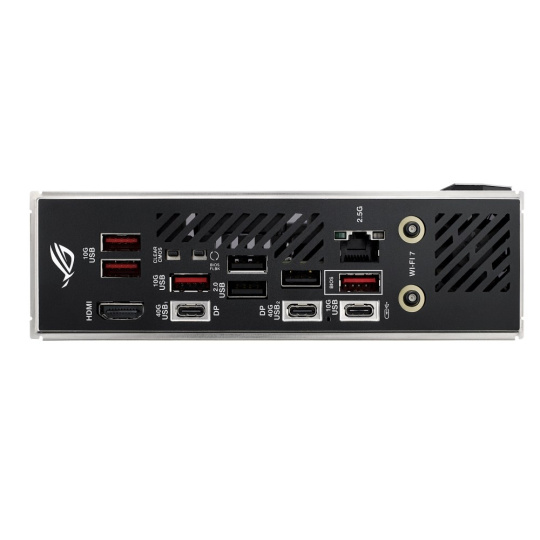

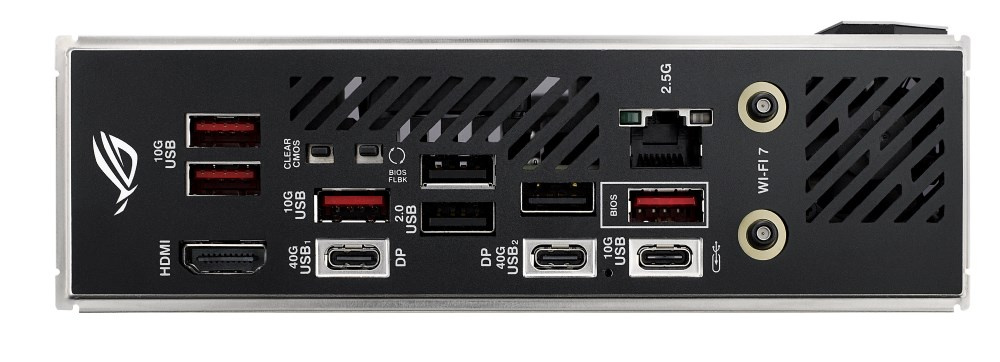

Back Panel I/O Ports
2 x USB4® (40Gbps)(2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports
Special Features
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x FlexKey button
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide
Operating System
Windows® 11 64-bit
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
