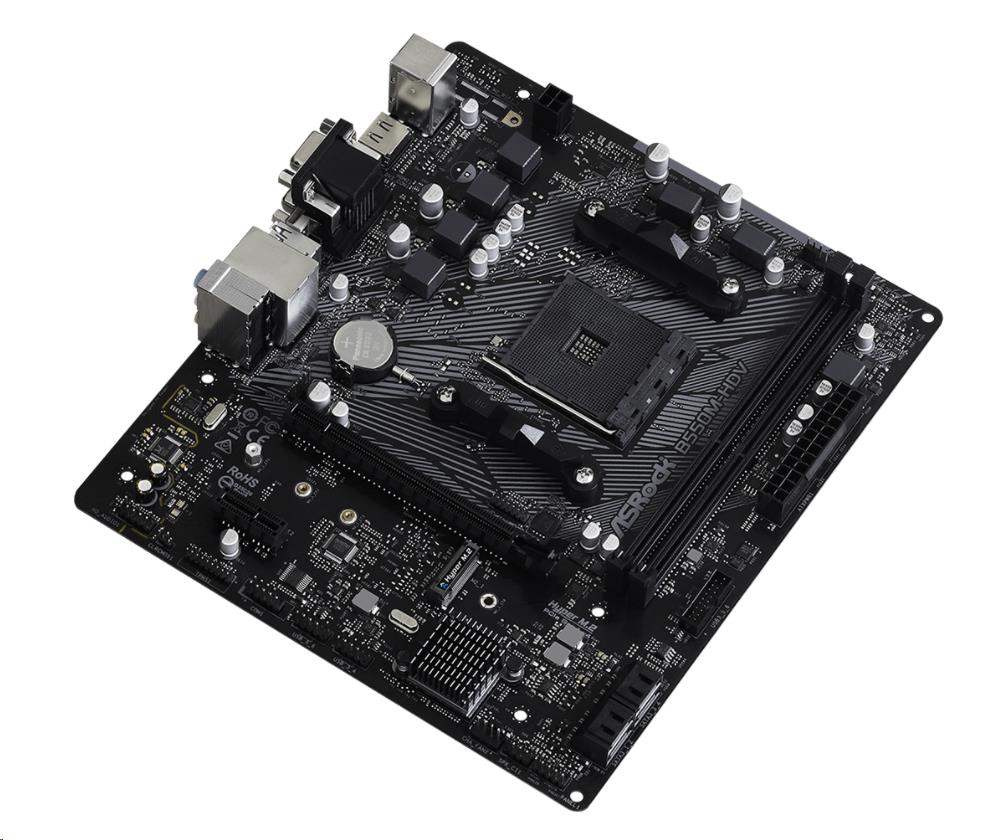

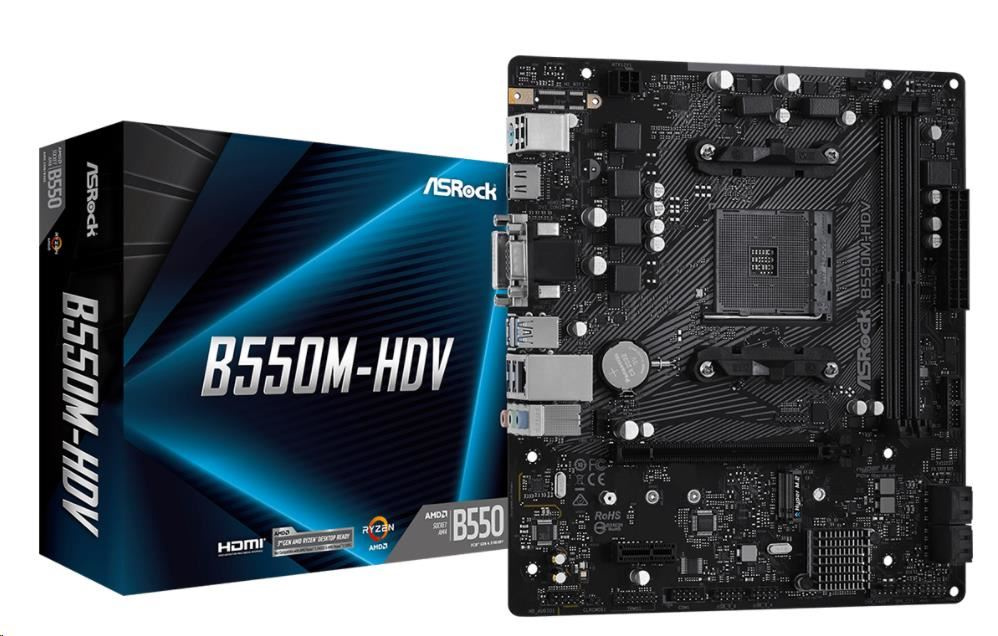

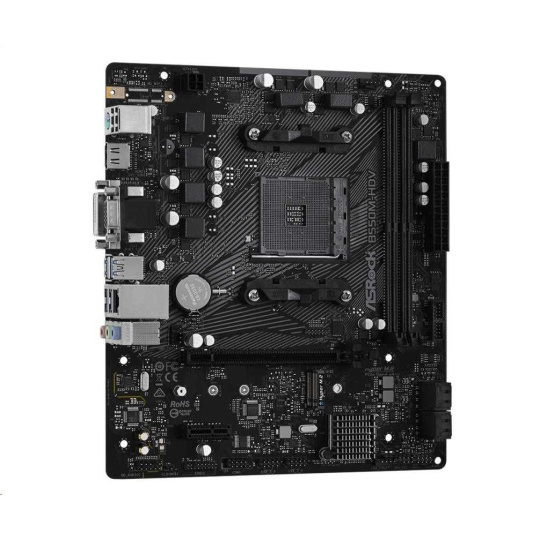

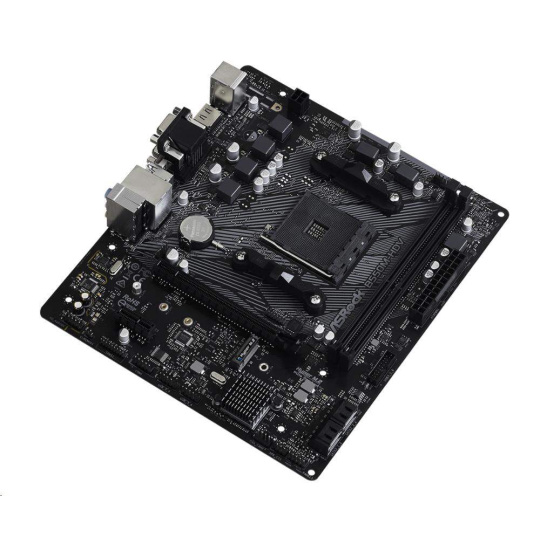

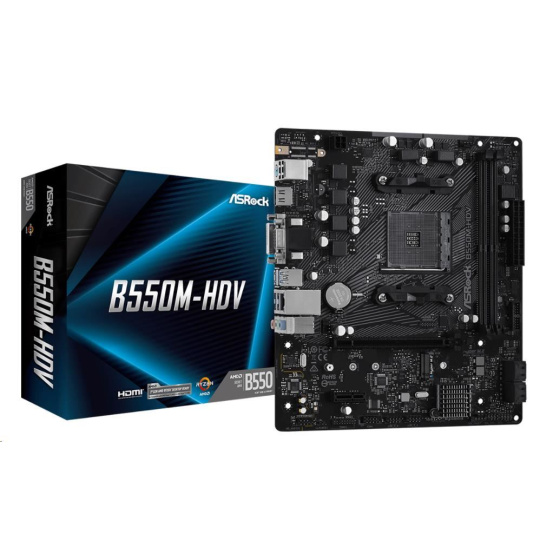

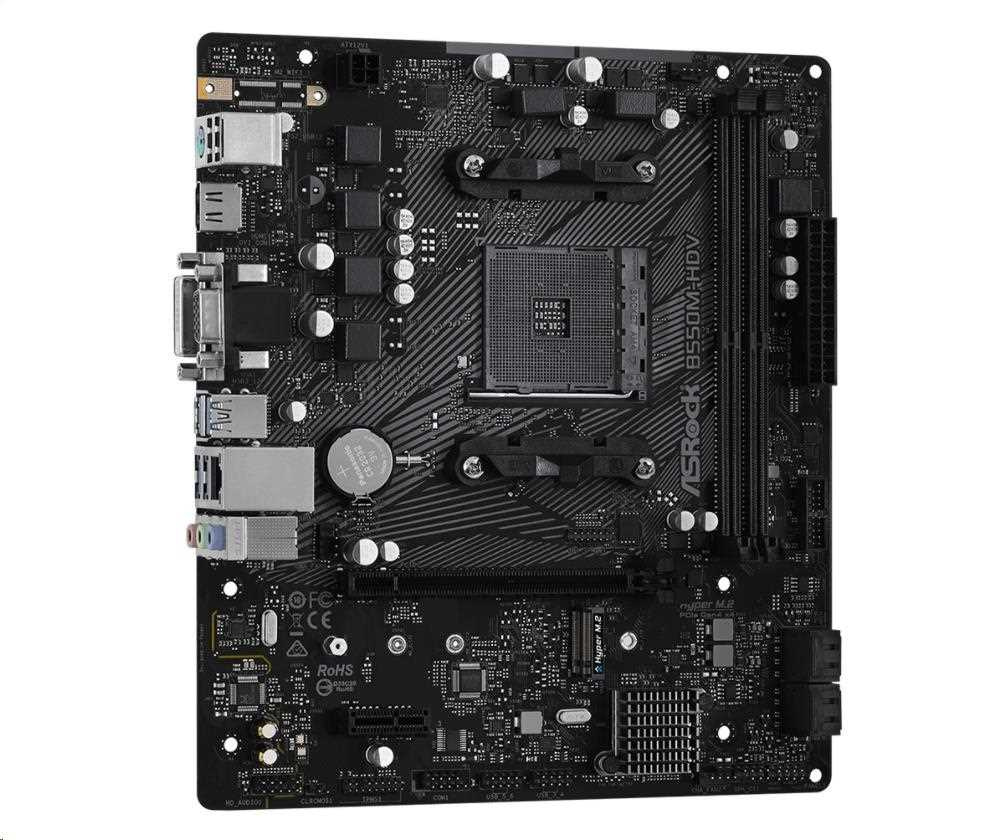

ASRock MB Sc AM4 B550M-HDV, AMD B550, 2xDDR4, HDMI, DVI

Formát základní desky:micro ATX; Chipset:AMD; Socket (patice):Socket AM4; Technologie paměti RAM:DDR4; Podpora RAID:1, 10; PCI Express x16:Více než 1; 3.5mm Jack.... více
Běžná cena: 2 403  (-20%)
Skladem > 5 ks
1 911 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 380624
EAN: 4710483931635
Záruka: 24 Měsíc(ů)
Výrobce: ASRock
Popis a parametry

ASRock MB Sc AM4 B550M-HDV, AMD B550, 2xDDR4, HDMI, DVI

B550M-HDV

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 6 Power Phase Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN


TECHNICAL SPECIFICATIONS

Unique Feature ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
- 6 Power Phase design

*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

Chipset - AMD B550
Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots*
Graphics

- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

Slots

AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

- 1 x PCI Express 3.0 x1 Slot

*Supports NVMe SSD as boot disks

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)*

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Connector

- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection

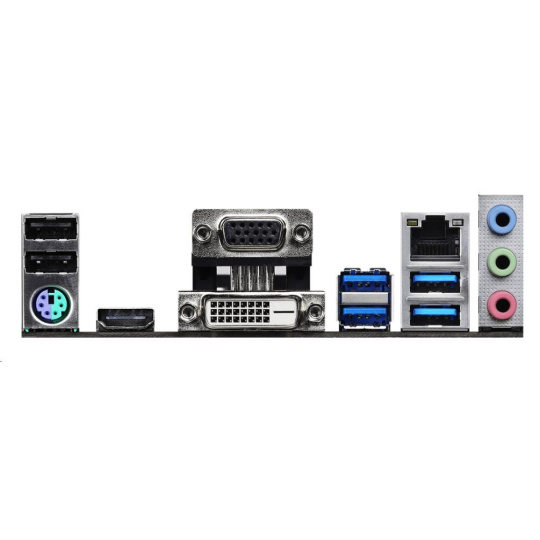

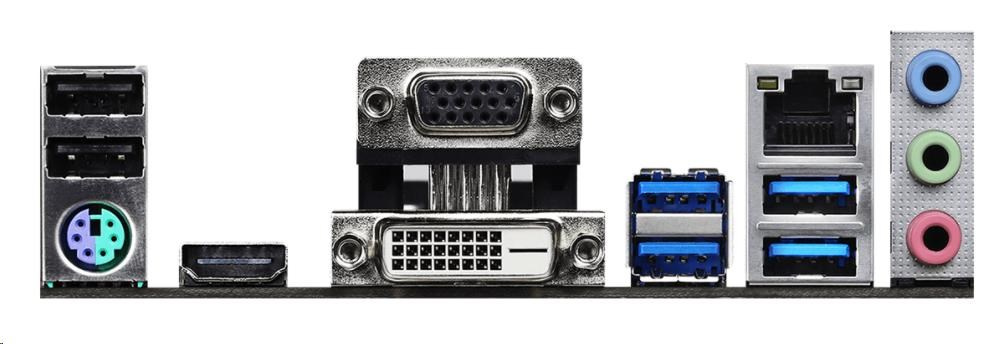

Rear panel I/O - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Hardware Monitor - Temperature Sensing: CPU, Chassis Fans
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System - Microsoft® Windows® 10 64-bit
Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
- Solid Capacitor design
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Formát základní desky
micro ATX
Chipset
AMD
PCI Express x16
Více než 1
Podpora RAID
1
Podpora RAID
10
3.5mm Jack
Ano
