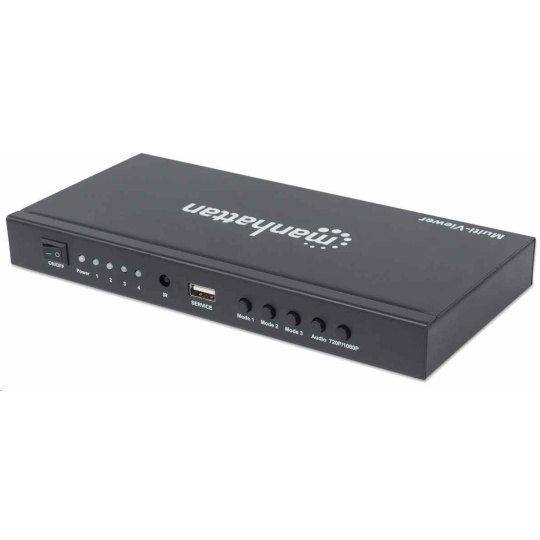

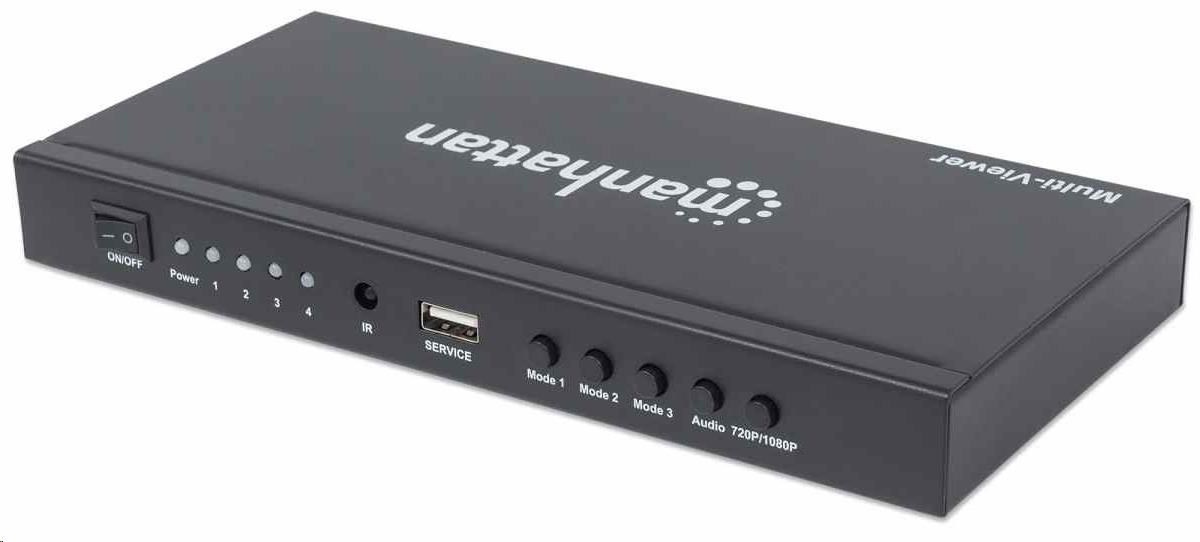

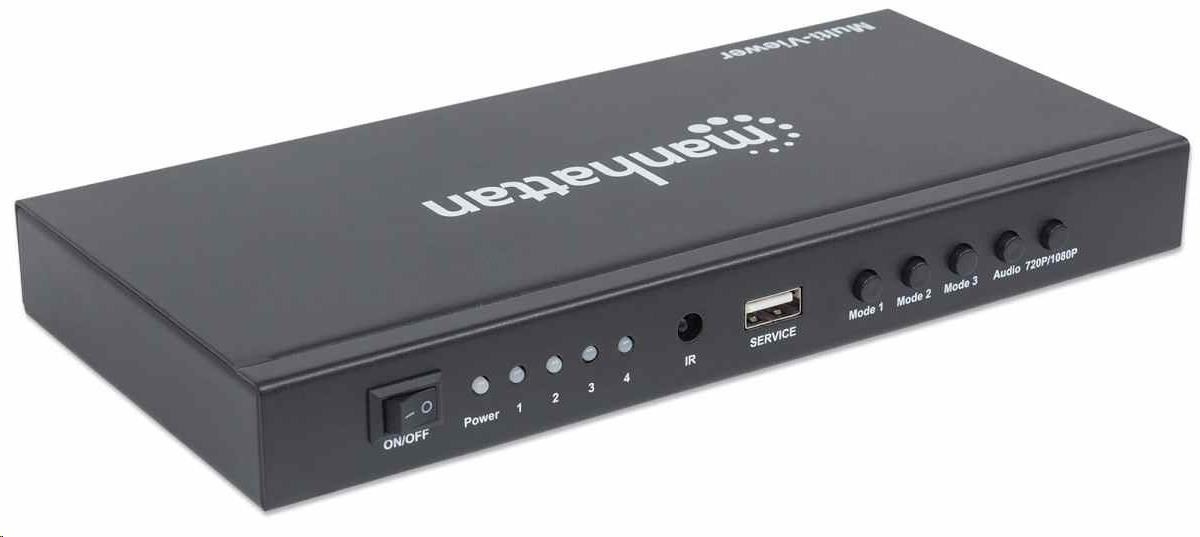

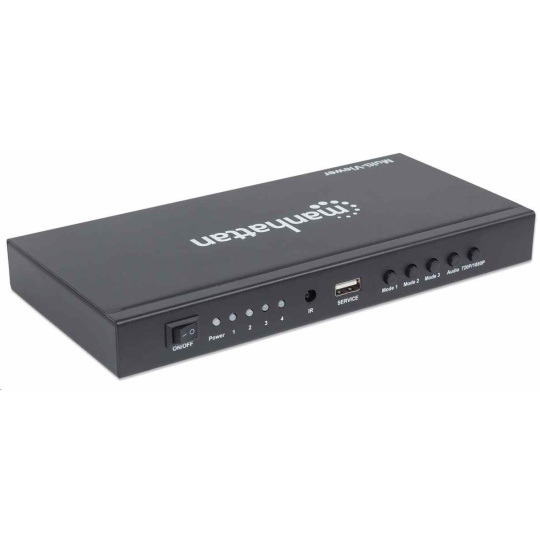

Manhattan HDMI přepínač, 1080p 4-Port HDMI Multiviewer Switch, černá
Popis a parametry
Manhattan HDMI přepínač, 1080p 4-Port HDMI Multiviewer Switch, černá
1080p 4-Port HDMI Multiviewer Switch
Switch with Four Inputs on One Display, Video Bandwidth Amplifier, IR Remote Control, Black
- Share up to four HDMI Audio/Video sources on one display at the same time or one at a time
- Multiviewer function supports four customizable modes: Full Screen and three variations of Combo Mode with seamless switching between sources
- Supports 1080p resolution as well as HD 3D video and Deep Color (36-bits/pixel)
- Integrated video bandwidth amplifier
- Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
- Supports Stereo, Coaxial and Toslink Audio output for connection to amplifier or receiver for the best sound quality

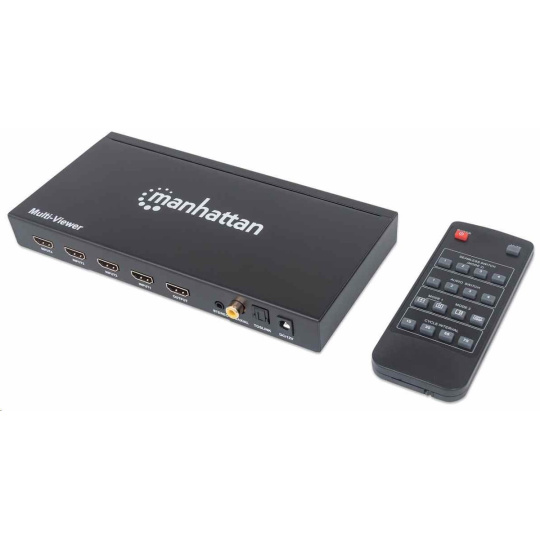

- Supports source switching via IR remote control or manual switching with the push of a button
- A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (reducing space and cost needed for multiple displays), security and other applications
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Fully HDCP compliant
- AC powered with Plug and Play installation; no special setup or remote required
- Plug-and-play installation
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | - HDMI 1.3 - HDCP 1.4a - CE - FCC - RoHS2 |
| Package Contents | - 1080p 4-Port HDMI Multiviewer Switch - IR Remote Control - Power Adapter - Quick Instruction Guide |
| General | |
| Source-to-switch range | up to 15 m (49 ft.) |
| Switch-to-display range | up to 15 m (49 ft.) |
| Power | 12 VDC @ 2 A; AC power adapter: 0.9 m (2.9 ft.) |
| Remote battery (included) | CR2025 3 V lithium cell |
| Connections | |

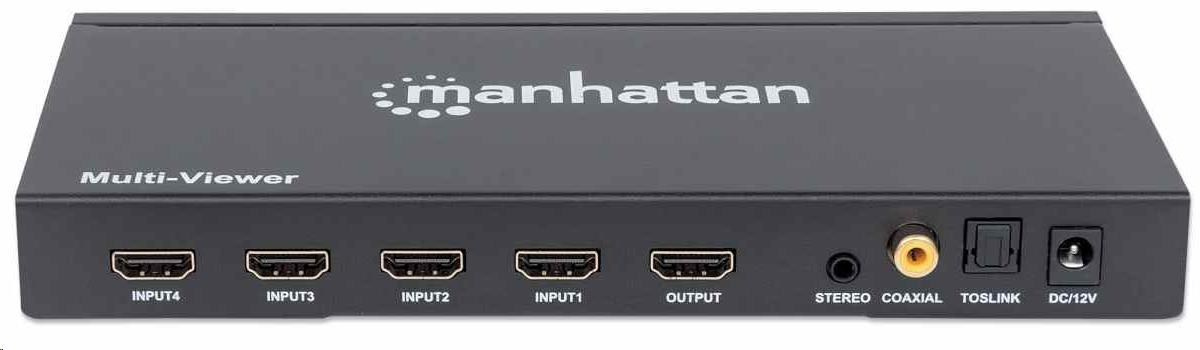

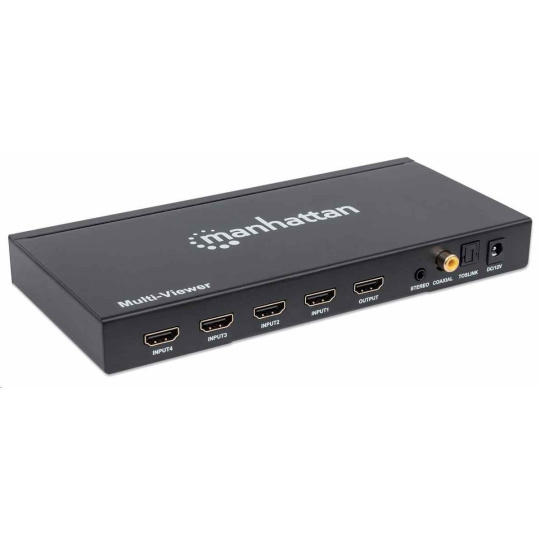

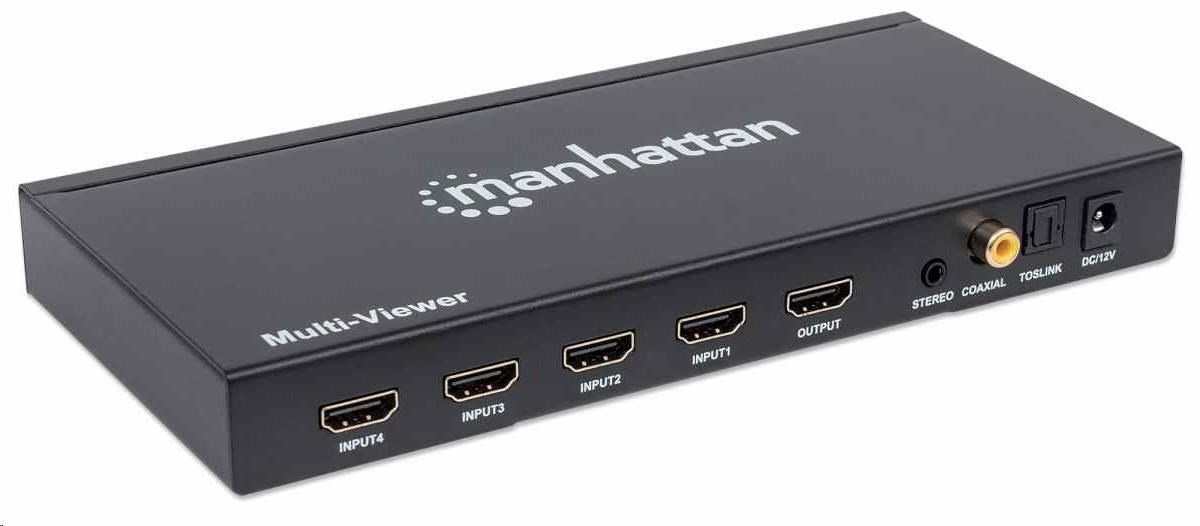

| Connections | One HDMI female, 19-pin (output) Four HDMI female, 19-pin (input) One Stereo female, 3.5 mm (output) One Coaxial female, S/PDIF (output) One Toslink female (output) One USB, Mini-B (input) factory use only One 12 VDC power female, OD 5.5 mm / ID 2.1 mm (input) |
| Signal Input/Output | |
| Input video signal | 400 - 600 mV |
| Input DDC signal | 5 V p-p (TTL) |
| Maximum single-link range | 2.25 Gbps and 1080p resolution |
| Output video | HDMI 1.3, HDCP 1.4a |
| Frequency | 2.25 Gbps / 225 MHz |
| Supported Video Resolutions | |
| DTV/HDTV | 480i/480p/576i/576p/720p/1080i/1080p |
| Physical | |
| LED indicators | power and port connection |
| Power adapter | 12 VDC / 2A; 0.9 m (2.9 ft.) |
| Dimensions | 213 x 100 x 25 mm (8.4 x 3.9 x 1 in.) |
| Weight | 0.46 kg (1 lbs.) |
| Housing | metal |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 0 – 96% |
.
