Cooler Master zdroj V650 SFX Gold, 650W
Popis a parametry

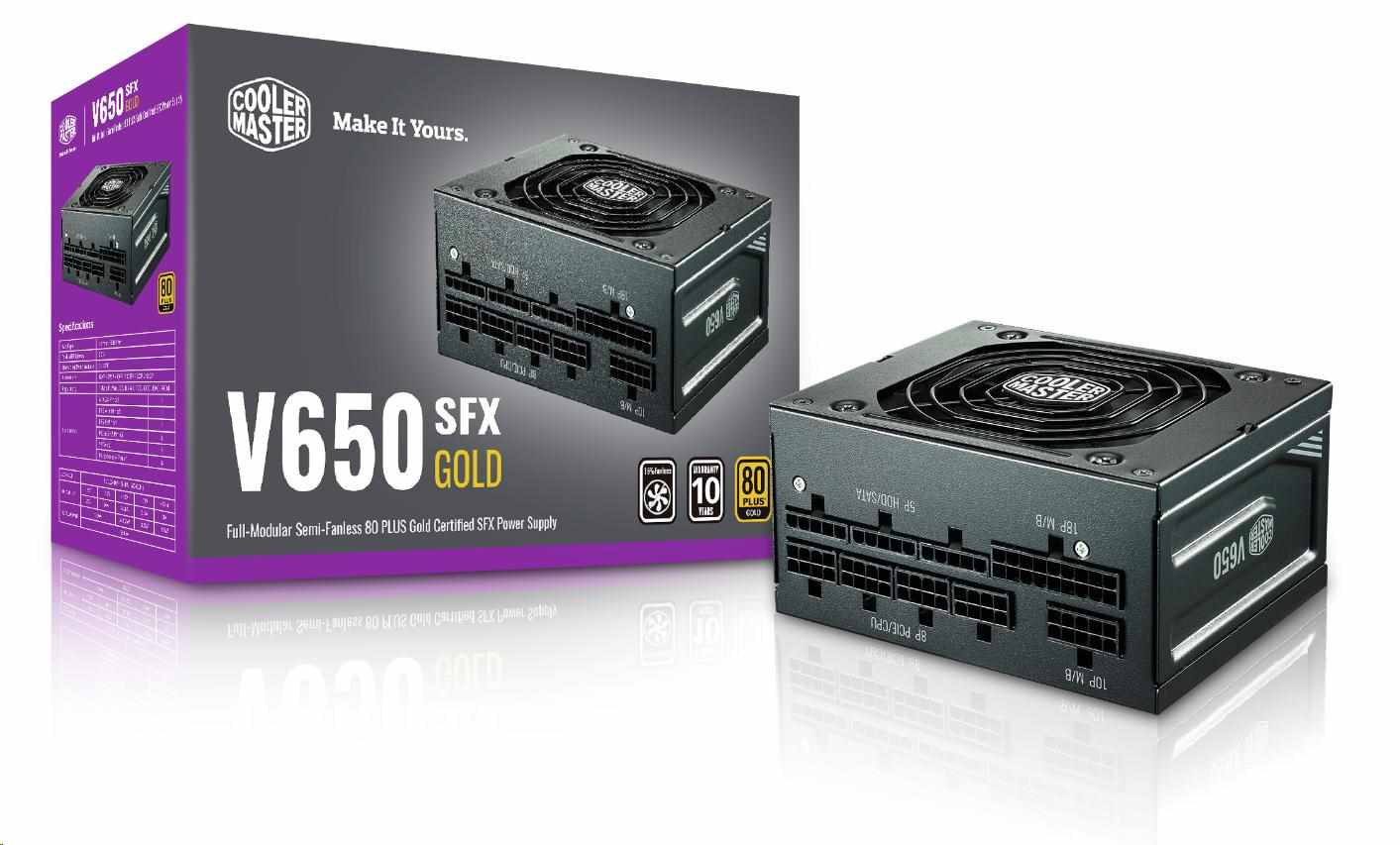

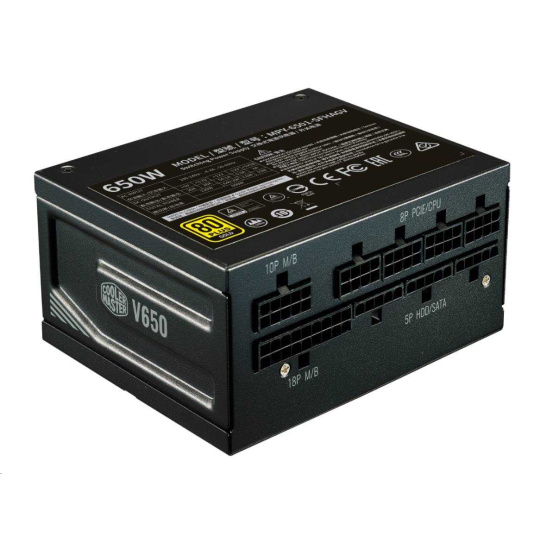

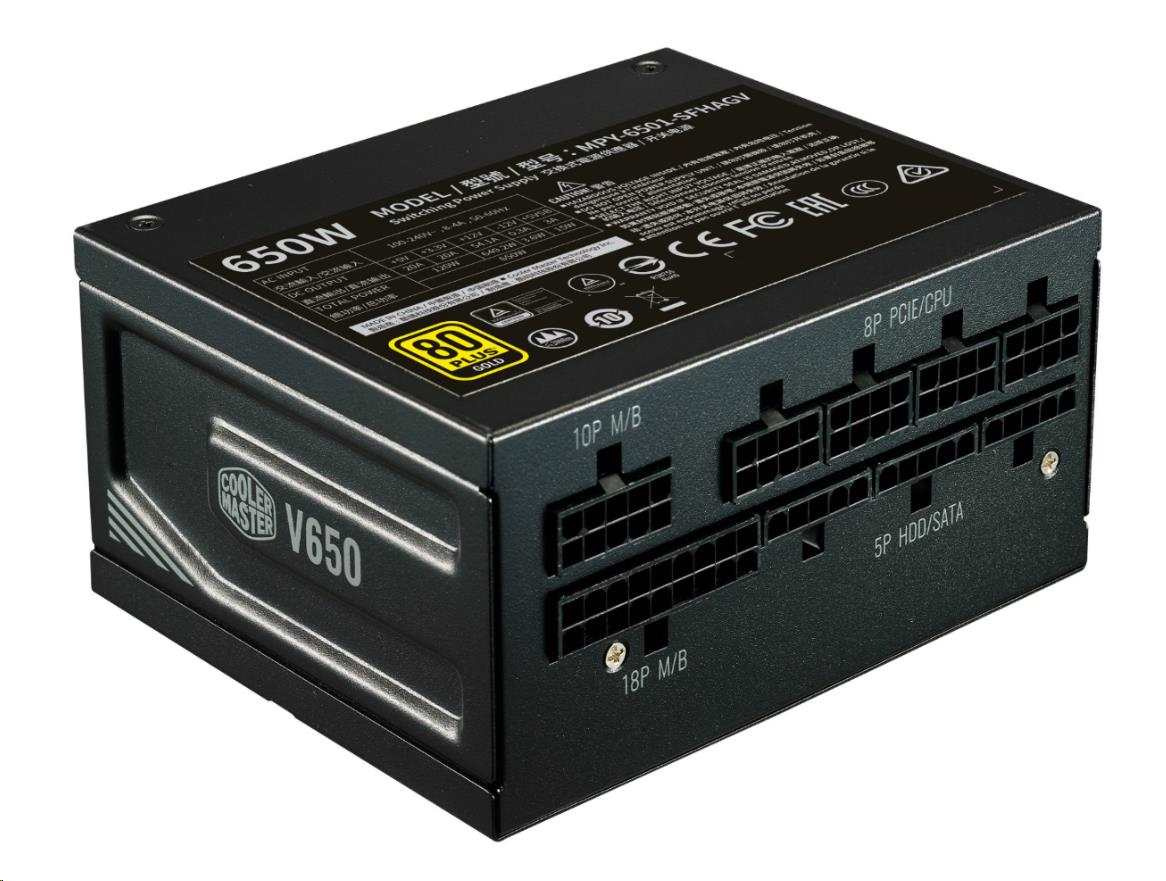

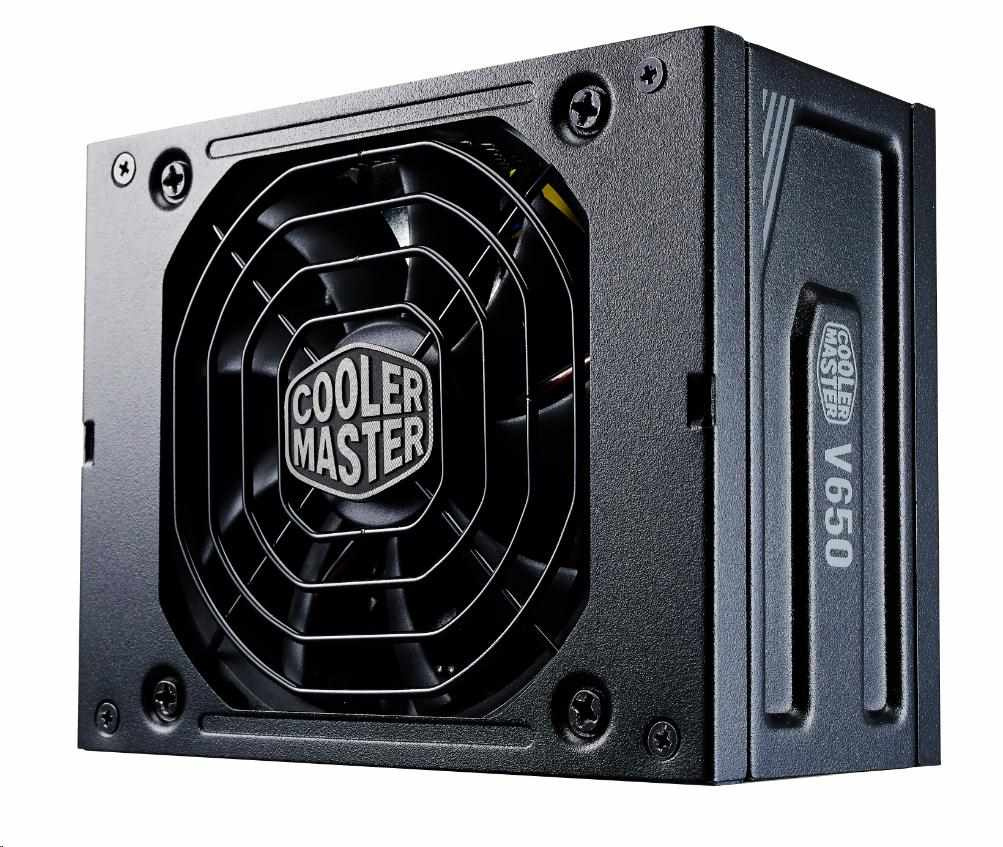

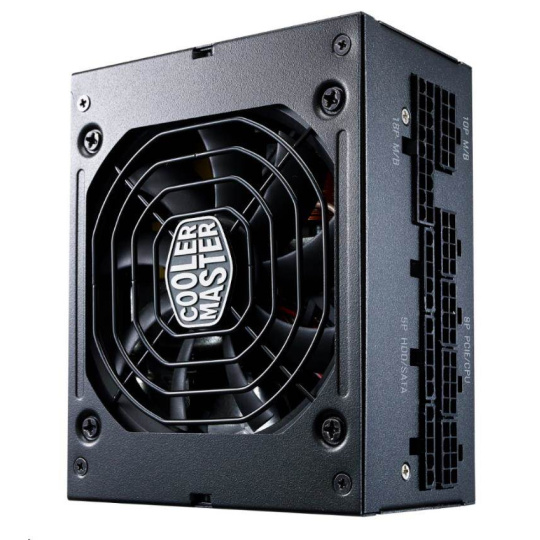

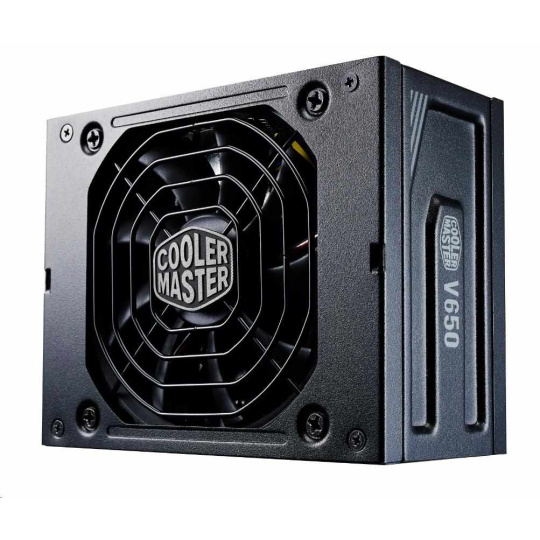

Cooler Master zdroj V650 SFX Gold, 650W
V650 SFX GOLD
FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY
- 80 Plus Gold Efficiency
- SFX Form Factor

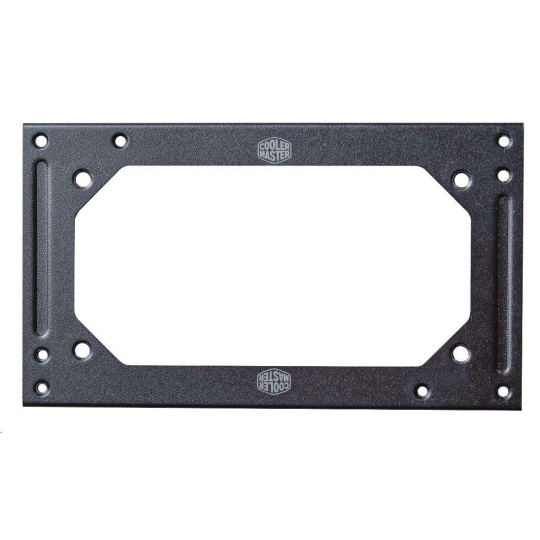

- SFX-to-ATX Bracket
- 80 Plus Gold Certified

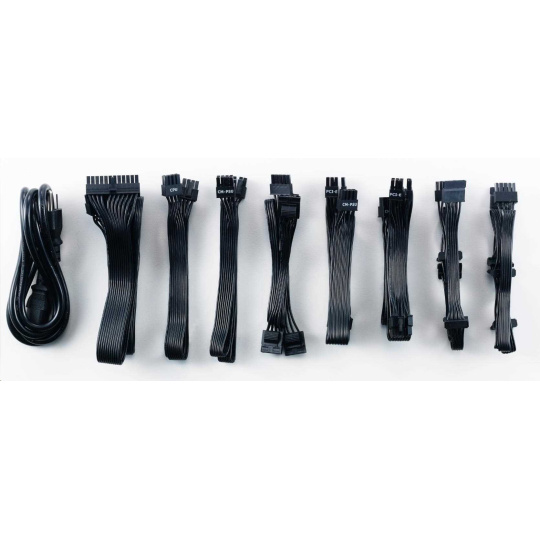

- Full-modular Cabling
- 10 Year Warranty

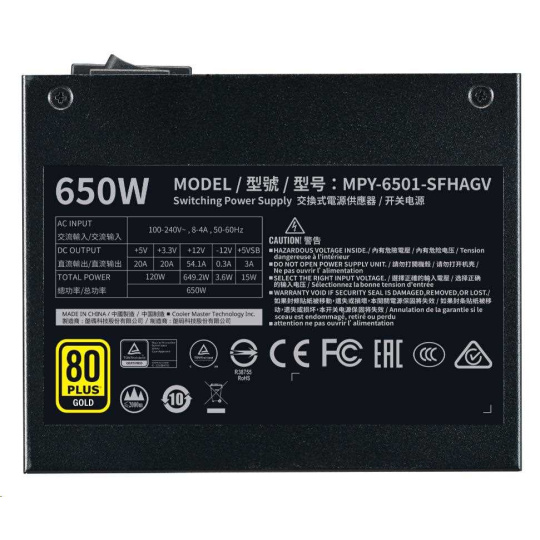

TECHNICAL SPECIFICATIONS

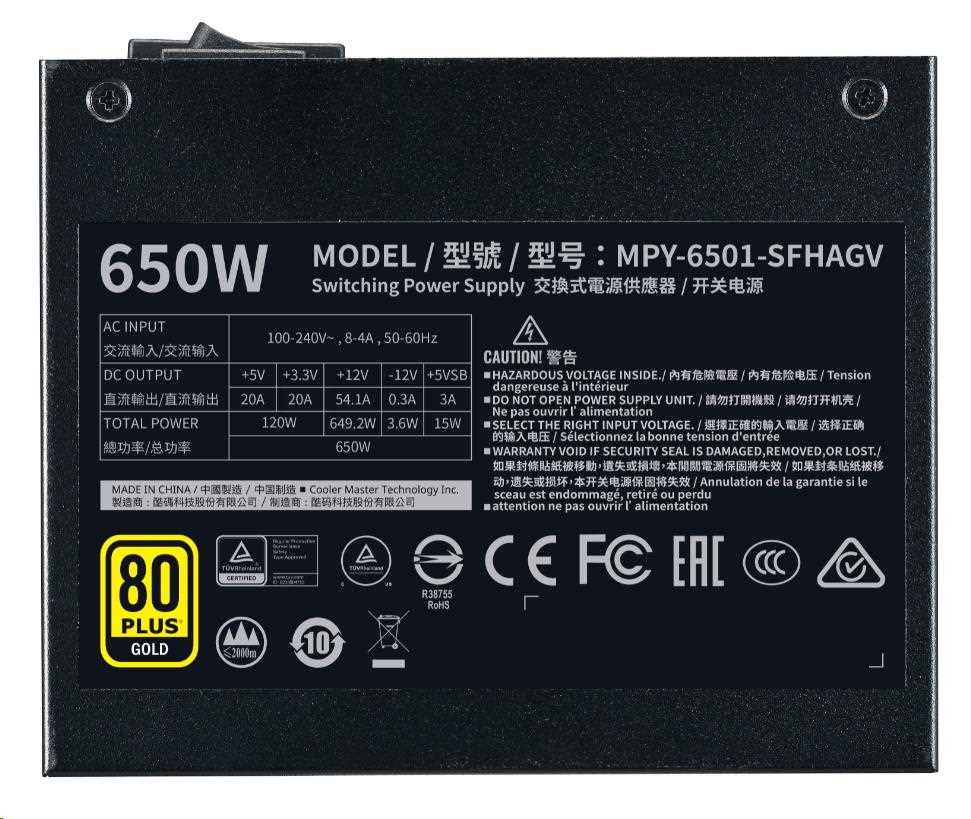

| ATX Version | SFX 12V Ver.3.42 |
| PFC | Active PFC |
| Input Voltage | 90-264 V |
| Input Current | 8-4A |
| Input frequency | 47-63 Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |

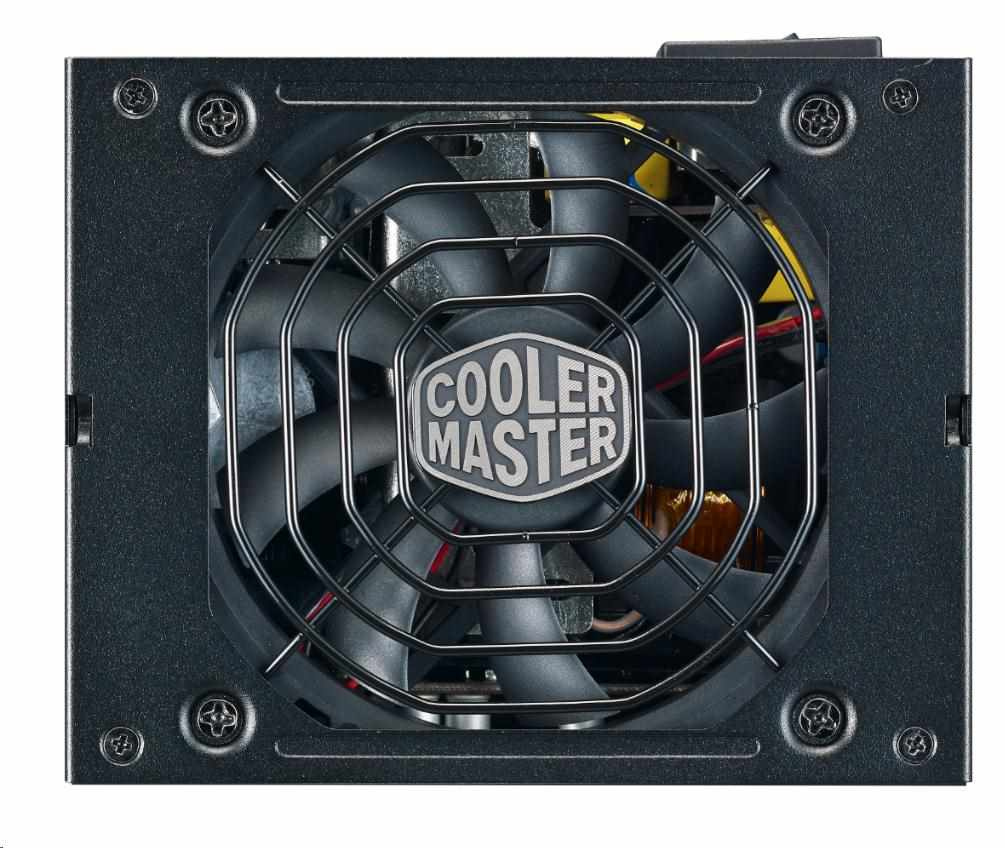

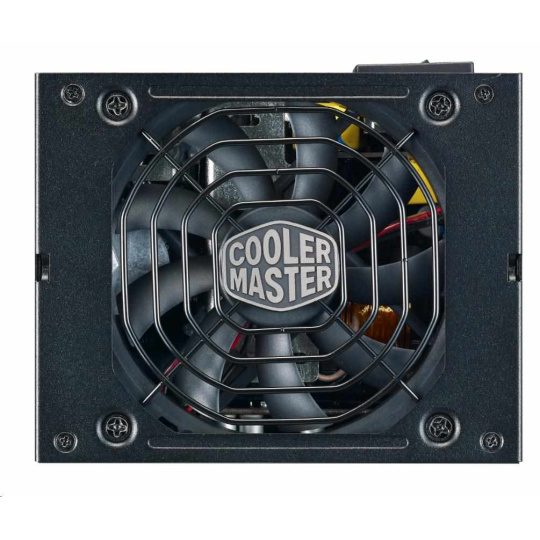

| Fan Size | 92 mm |
| Fan Bearing | FDB |
| Efficiency | 90% Typical Load |
| 80 Plus Rating | 80 PLUS Gold |
| ERP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100-500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |

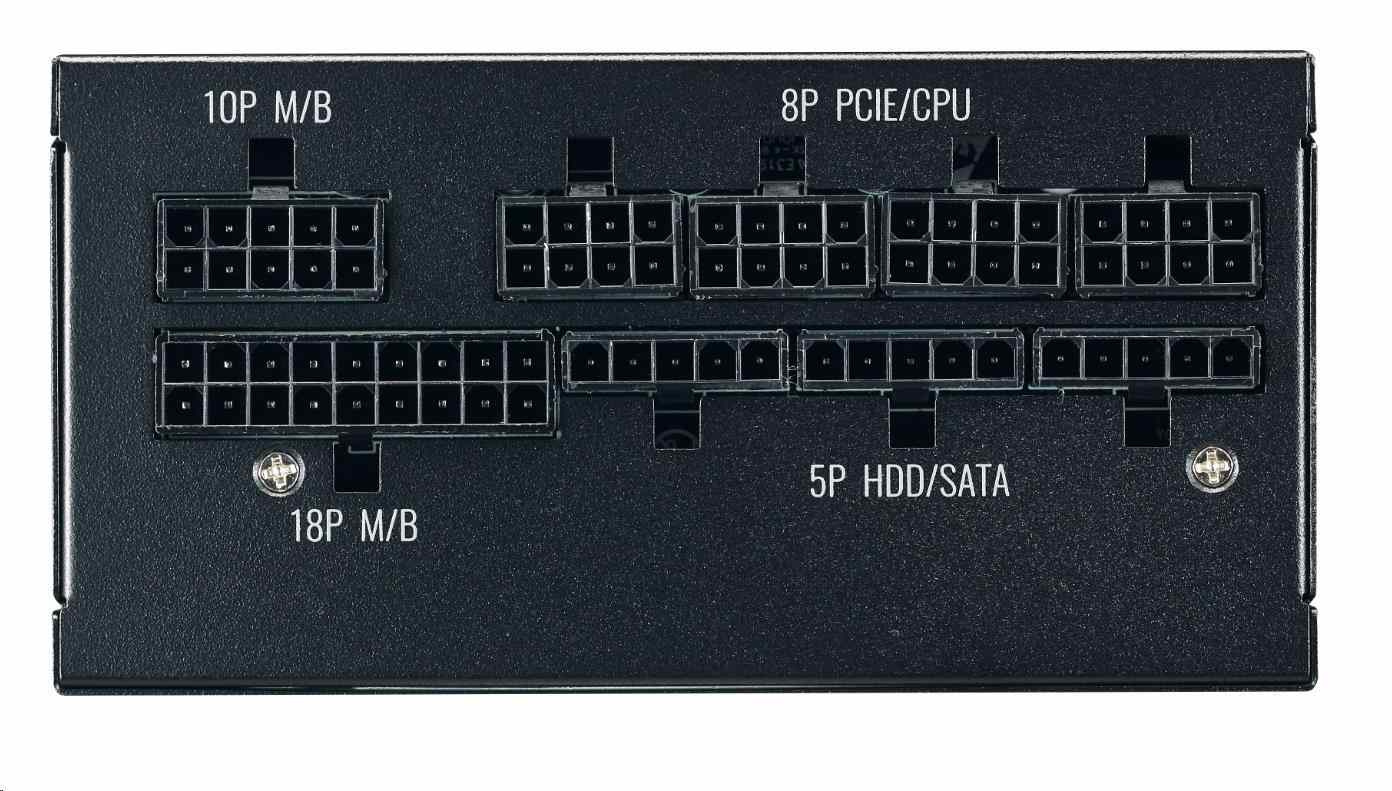

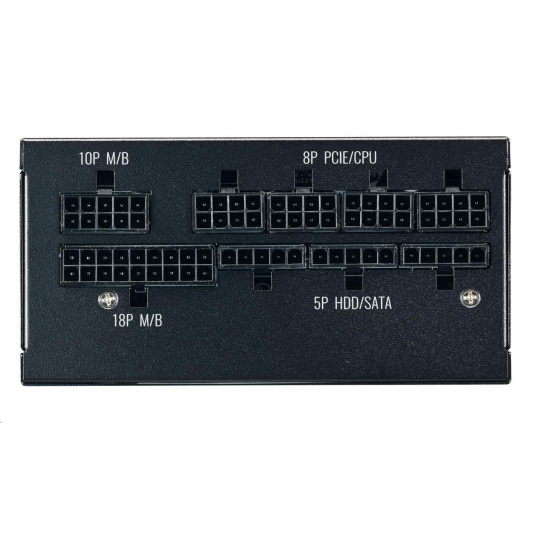

| ATX 24-pin Connectors | 1 |
| EPS 4+4 pin Connectors | 1 |
| EPS 8-pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4-pin Connectors | 4 |
| PCI-E 6+2 pin Connectors | 4 |
| Series | V Gold Series, V SFX Gold Series |
| 80 PLUS | Gold |
| Modular | Full Modular |
| Wattage | 500 to 750 W |
.
ParametryPorovnání
Formát zdroje
SFX
Konektory
PCIe 8-pin
Konektory
8pin CPU 2x
Konektory
PCIe 6-pin
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Modulární kabeláž
Ano
Efektivita zdroje
80 Plus Gold
Výkon zdroje (W)
650
Cooler Master zdroj V650 SFX Gold, 650W
