ASUS zdroj TUF-GAMING-750B 750W, 80+ Bronze
Popis a parametry

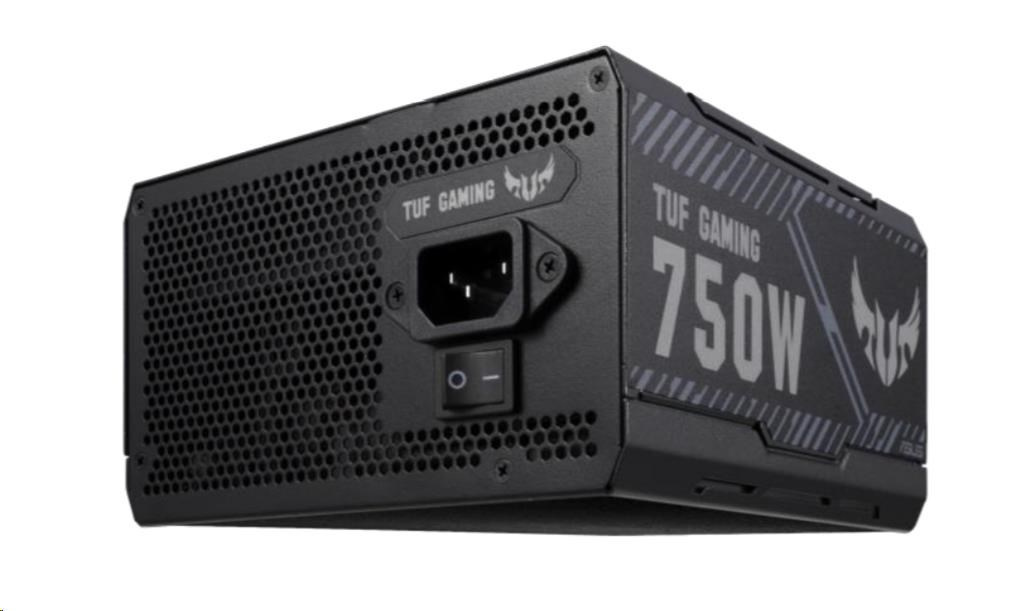

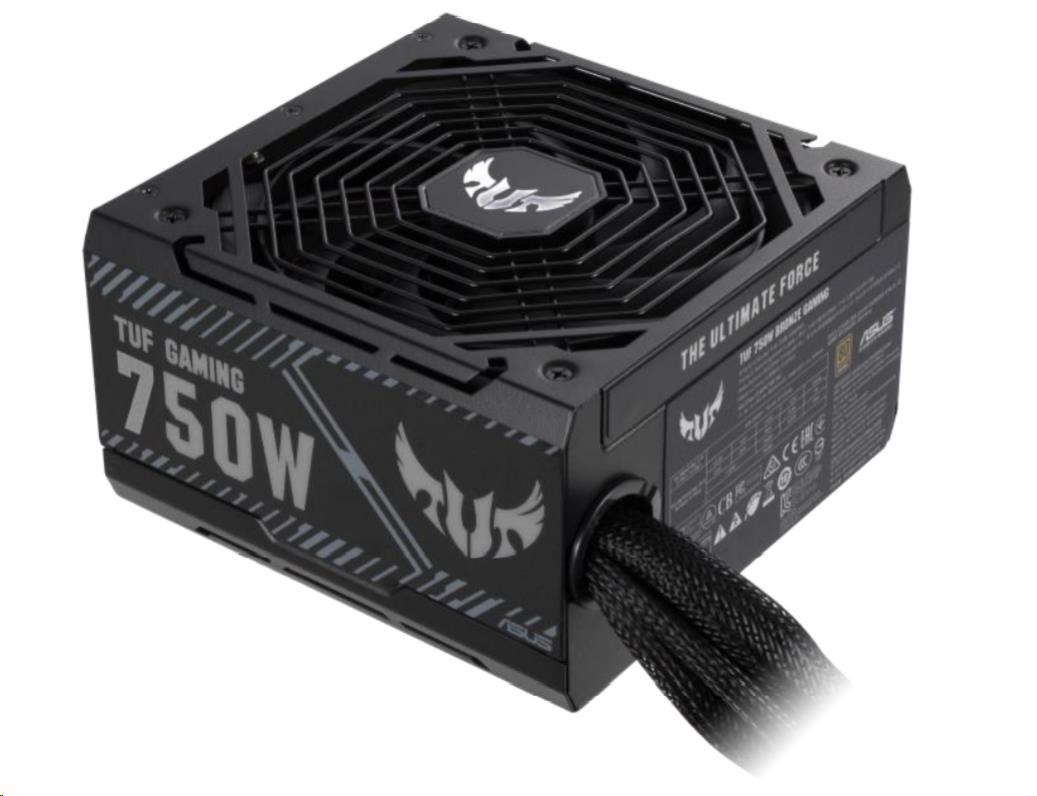

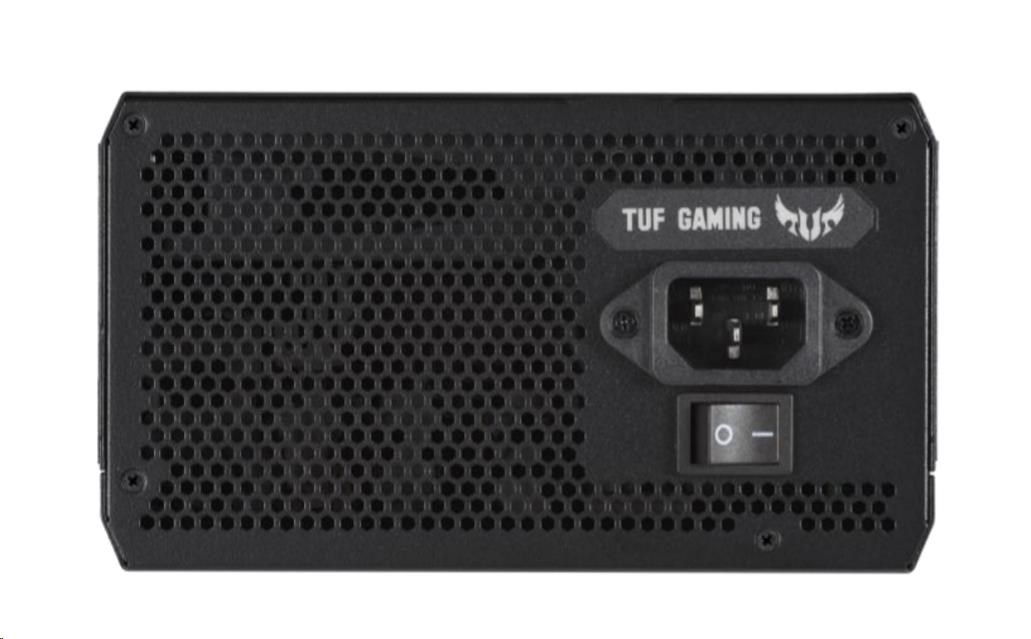

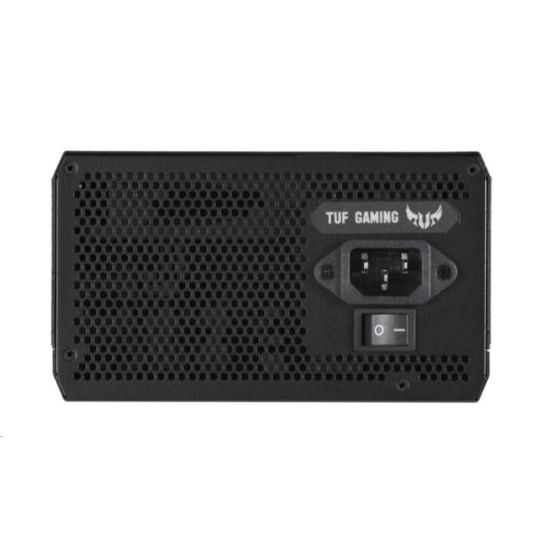

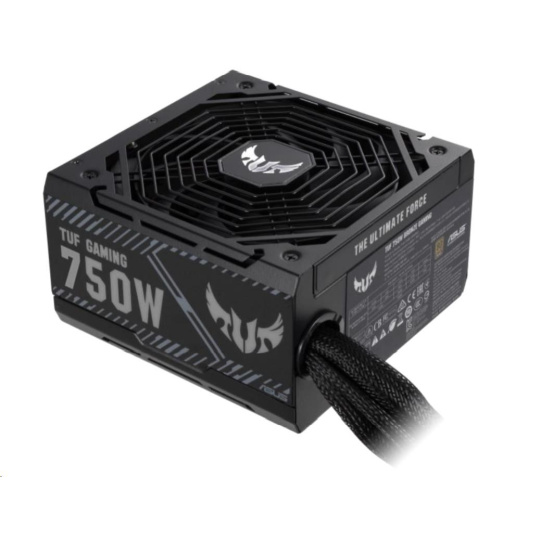

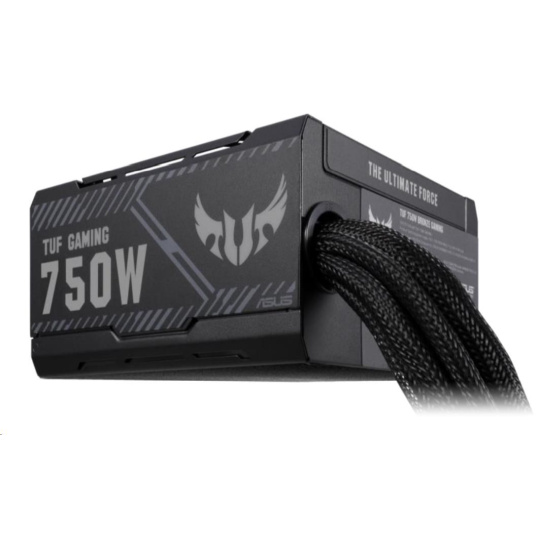

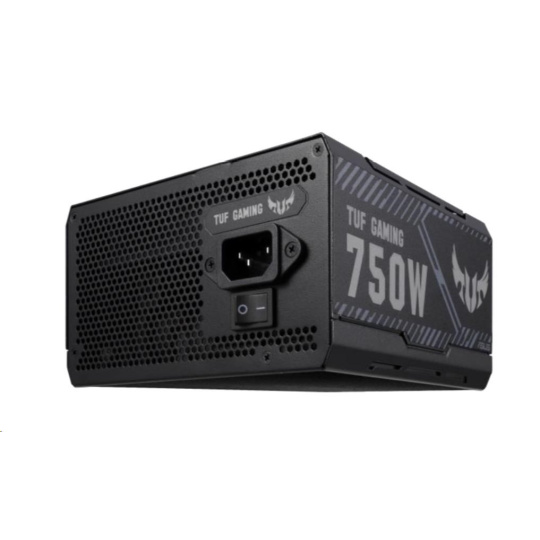

ASUS zdroj TUF-GAMING-750B 750W, 80+ Bronze
TUF-GAMING-750B
ASUS TUF Gaming 750W Bronze PSU (Power Supply, 80 PLUS Bronze, Military-grade Certification, Dual ball Fan Bearings, Protective PCB Coating, Axial-tech Fan Design, 0dB Technology, Sleeved Cables, 6-year warranty)
Features
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB technology lets you enjoy light gaming in relative silence.
- Sleeved cables leave your rig looking tactically clean.
- 6-year warranty included.
Asus features
- 80 Plus Bronze Certification - High-quality components ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification.
- 6-year Warranty - We're so confident about the reliability of the TUF Gaming Series PSUs that we back them with a 6-year warranty.
ASUS Exclusive Innovations
- Military-grade Certification - Capacitors and chokes in TUF Gaming PSUs are certified to pass military-grade specifications, ensuring these critical components can survive harsh environmental conditions as well as bumps and vibrations.
- Dual Ball Fan Bearings - Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
- Protective PCB coating - A protective conformal coating envelops the PCB to protect against moisture and dust

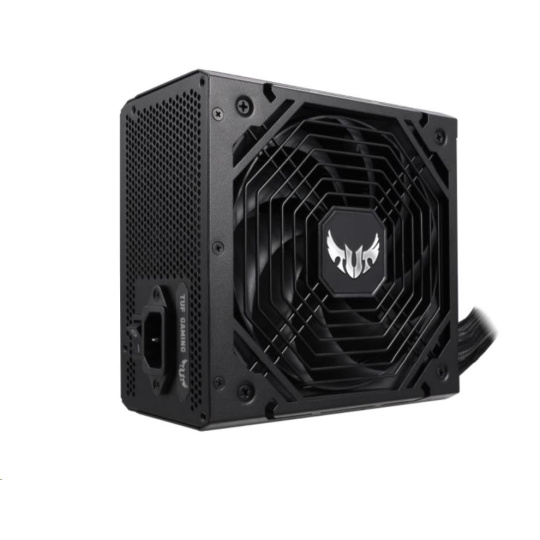

- 0dB Technology - An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again

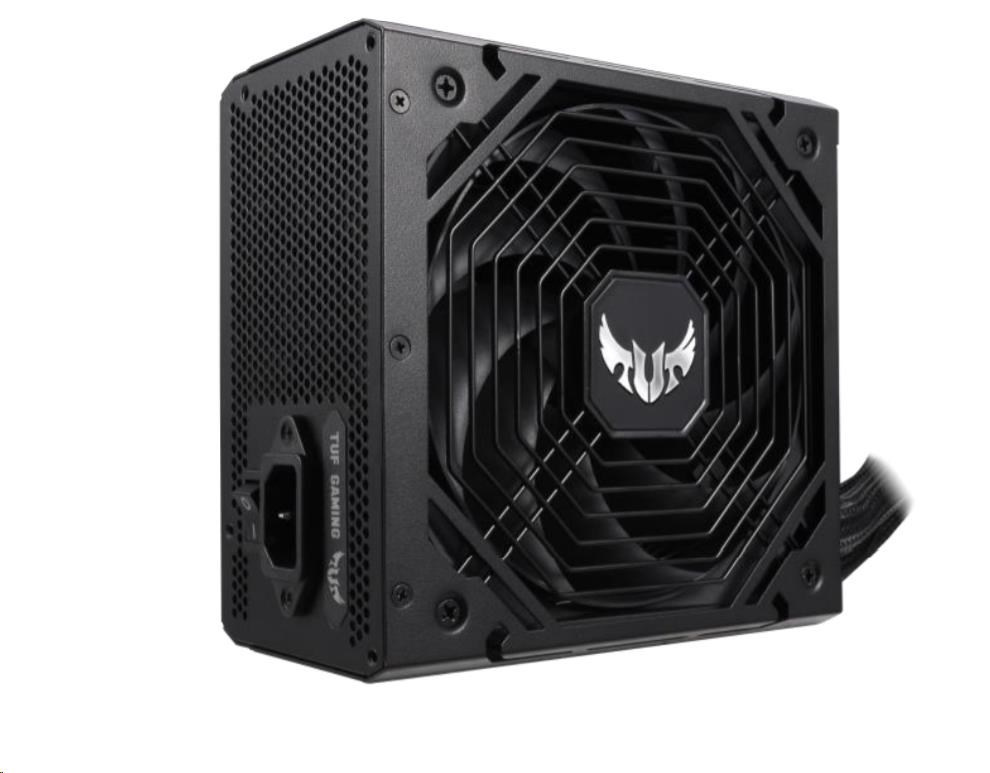

- Axial-tech Fan Design - Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming Series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

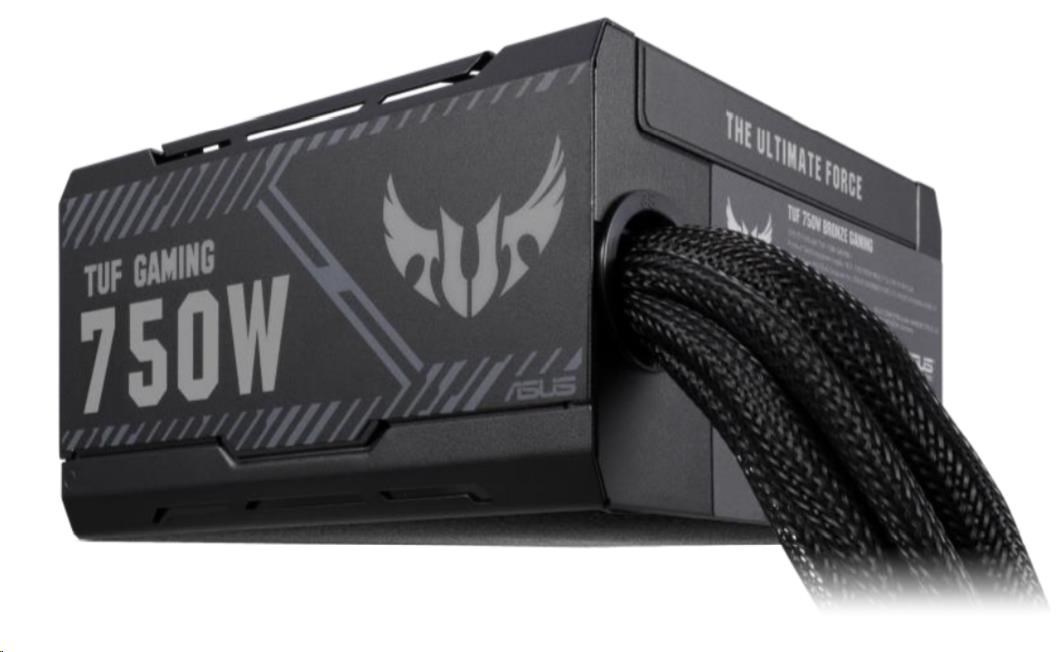

- Sleeved Cables - Cables swathed in black sleeving leave your rig looking tactically clean. Also, we lengthen the CPU cable to 800mm to easily DIY the build.
TECHNICAL SPECIFICATIONS
| Model name | TUF-GAMING-750B |
| Intel Specification | ATX 12V |
| Efficiency | 80 Plus Bronze |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A, 25A, 62A, 0.8A, 3A |
| Combined Load | 130W, 744W, 9.6W, 15W |
| Total Output | 750W |
| Connectors | MB 24/20-pin x 1 SATA x 8 CPU 4+4-pin x 2 Peripheral x 4 PCI-E 6+2-pin x 4 |
| Package Contents (Cable + Accessory) | Power Cord x 1 Motherboard Power Cable x 1 CPU Cable (800mm) x 2 PCI-E Cable x 2 SATA Cable x 2 Peripheral x 1 TUF Gaming sticker x 1 |
| Dimension | |
| PSU Size (mm) | 150 x 150 x 86 |
| Color Box (mm) | 290 x 200 x 108 |
| Weight | |
| Single PSU (kg) | 2.18 |
| Product Weight (kg) (with packing) | 2.87 |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
8pin CPU 1x
Konektory
8pin CPU 2x
Konektory
PCIe 6-pin
Konektory
PCIe 8-pin
Konektory
PCIe 16-pin Gen5
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Modulární kabeláž
Ne
Efektivita zdroje
80 Plus Bronze
Podsvícení
Bez podsvícení
Výkon zdroje (W)
750
