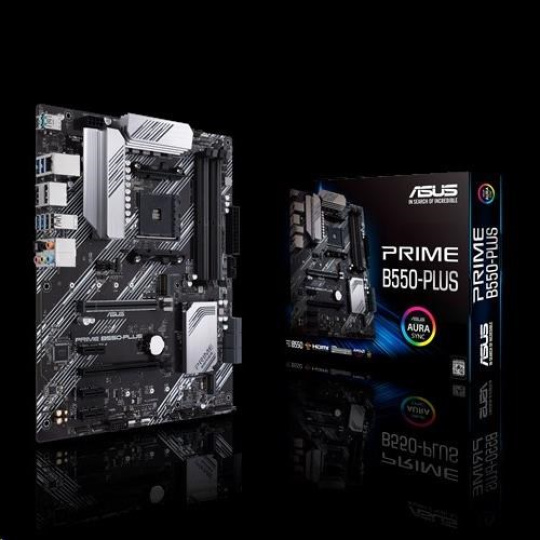

ASUS MB Sc AM4 PRIME B550-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI
Popis a parametry
ASUS MB Sc AM4 PRIME B550-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI

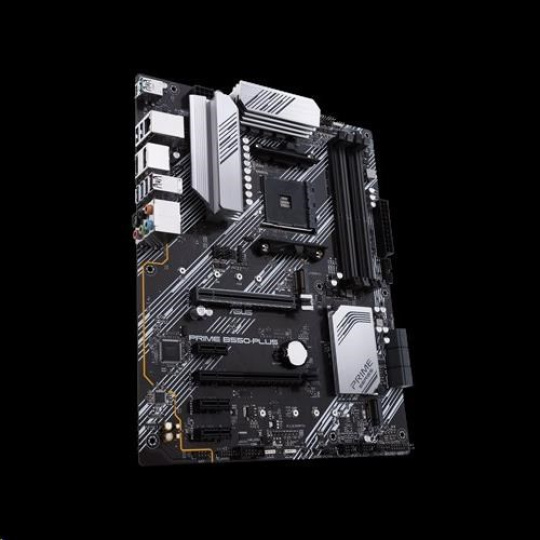

PRIME B550-PLUS
AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
TECHNICAL SPECIFICATIONS
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 * Support PCIe bifurcation for RAID on CPU function. |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), *2 Support Raid 0, 1, 10 |
| LAN | Realtek® RTL8111H ASUS LANGuard |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit |
| USB Ports | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |

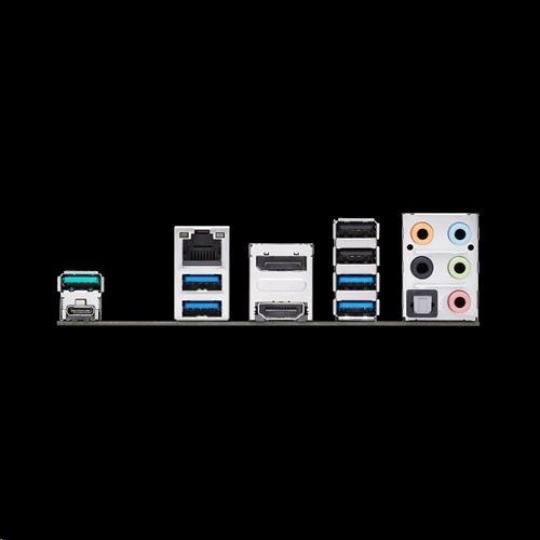

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |

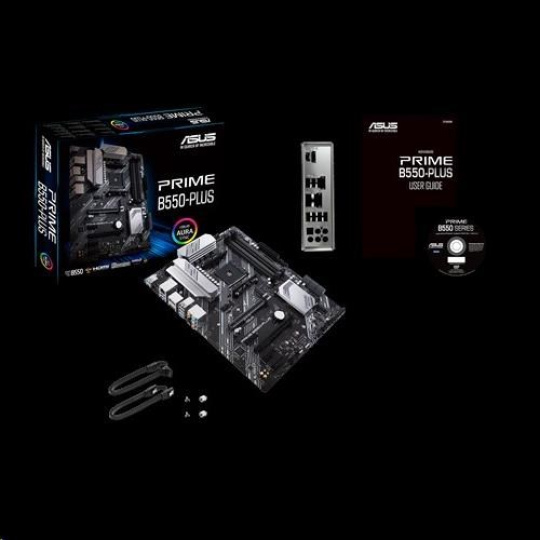

| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | *1 PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 slots is populated. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Formát základní desky
ATX
Chipset
AMD
Chipset
AMD B550
PCI Express x16
2
Podpora RAID
1
Podpora RAID
10
COM port
Ano
LPT port
Ne
Pro procesory
AMD
Počet paměťových slotů
4
3.5mm Jack
Ano
LAN
1Gbit/s
DisplayPort
1
Bezdrátové připojení
bez
Led Header
Ano
TPM
Ano
PCI Express x1
3
USB 2
6
USB 3
8
USB C
1
PCI
0
M.2 slot
2
SATA 3
6
VGA
0
DVI
0
HDMI
1
ASUS MB Sc AM4 PRIME B550-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI
