ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

Pro procesory:Integrovaný procesor; Socket (patice):Integrovaný procesor; Chipset:Intel; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:Mini-ITX; Podpora RAID:Bez RAID podpory; PCI Express x16:0; PCI Express x1:0; USB 2:2; USB 3:4; USB C:0; SATA 3:2; PCI:0; M.2 slot:2; 3.5mm Jack; LAN:1Gbit/s; VGA:1; DVI:0; HDMI:1.... více
Běžná cena: 2 585  (-19%)
Skladem 5 ks
2 081 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 417897
EAN: 4712900899436
Záruka: 36 Měsíc(ů)
Výrobce: Asus
Popis a parametry

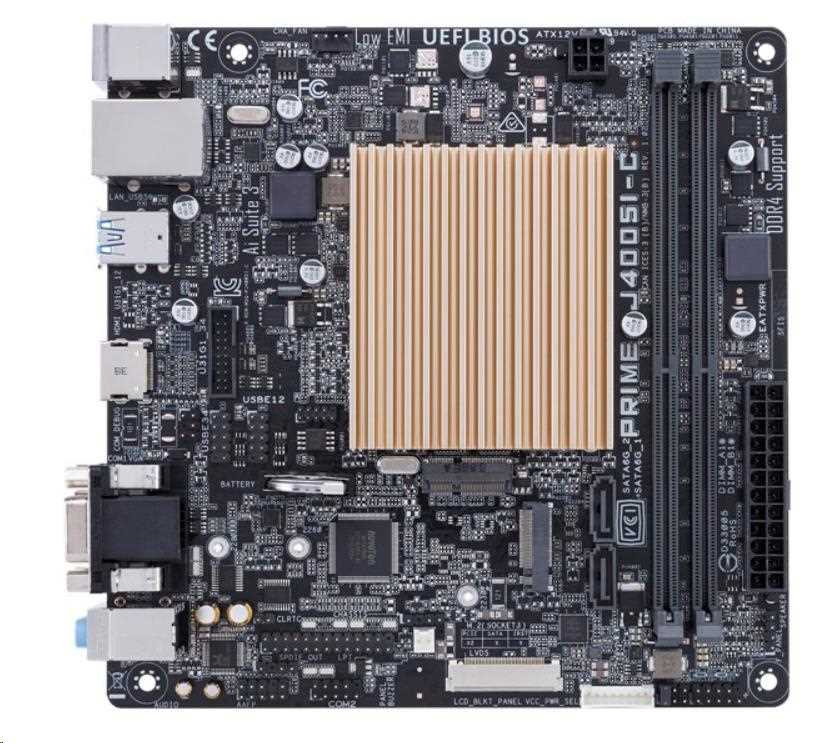

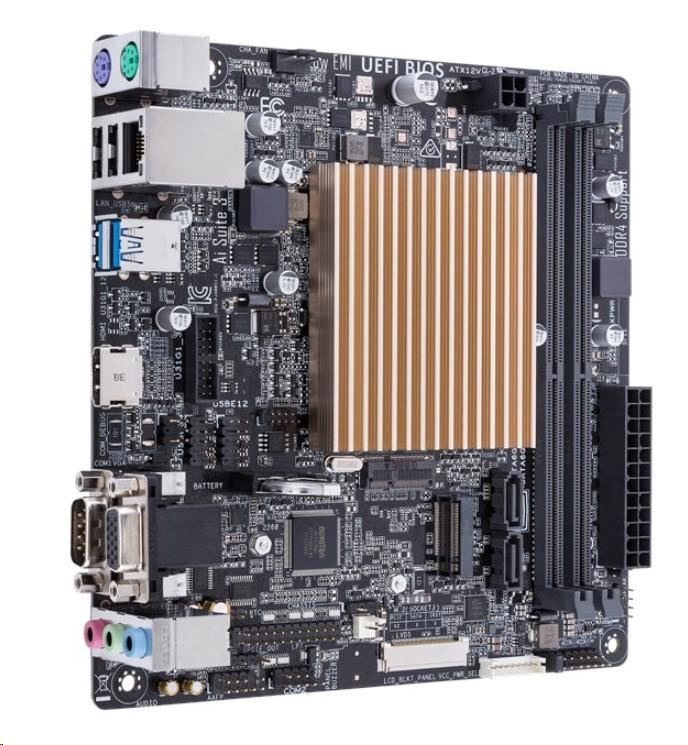

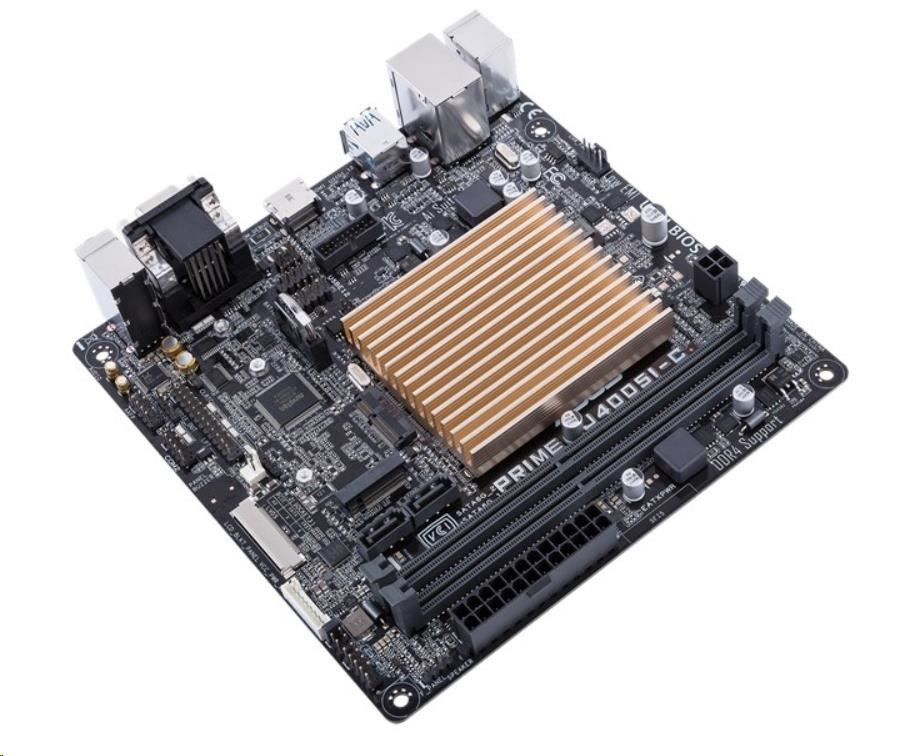

ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

PRIME J4005I-C

Low-power, fan-less motherboard for Intel Celeron® SoC J4005 processor, with 2 x DDR4 2400/2133 MHz, 5X Protection II and HDMI/D-Sub/LVDS support.

  • Proven quality - 5X Protection. 1000+ compatible devices. 8000+ validation hours.
  • AI Suite 3:One-stop access to innovative ASUS features
  • New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added

TECHNICAL SPECFICATION

Memory 2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB (for iGPU exclusively)
Supports up to 3 displays simultaneously
Storage 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
2 x SATA 6Gb/s port(s),
LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports Built-in Controller:
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Built-in Controller:
2 x USB 2.0 port(s) (2 at back panel, )
GL852G USB Hub:
4 x USB port(s) (4 at mid-board)
Special Features ASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-DIMM
Operating System Support Windows® 10 64-bit
Linux

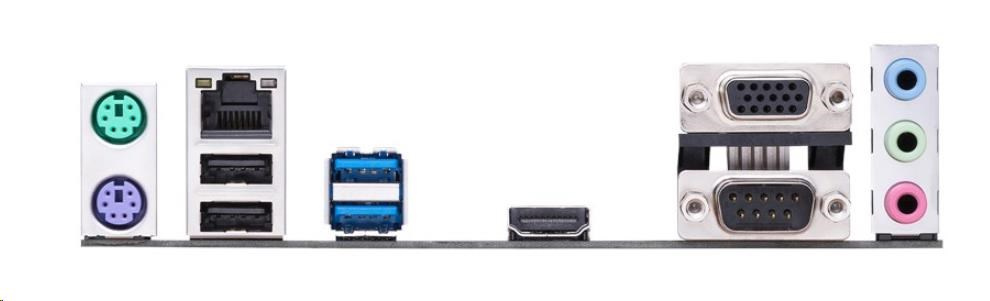

Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
Internal I/O Ports 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode)
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x Panel off header
1 x LVDS connector(s)
1 x System panel connector
1 x Flat panel display brightness connector
1 x Display panel VCC power selector
1 x Speaker connector

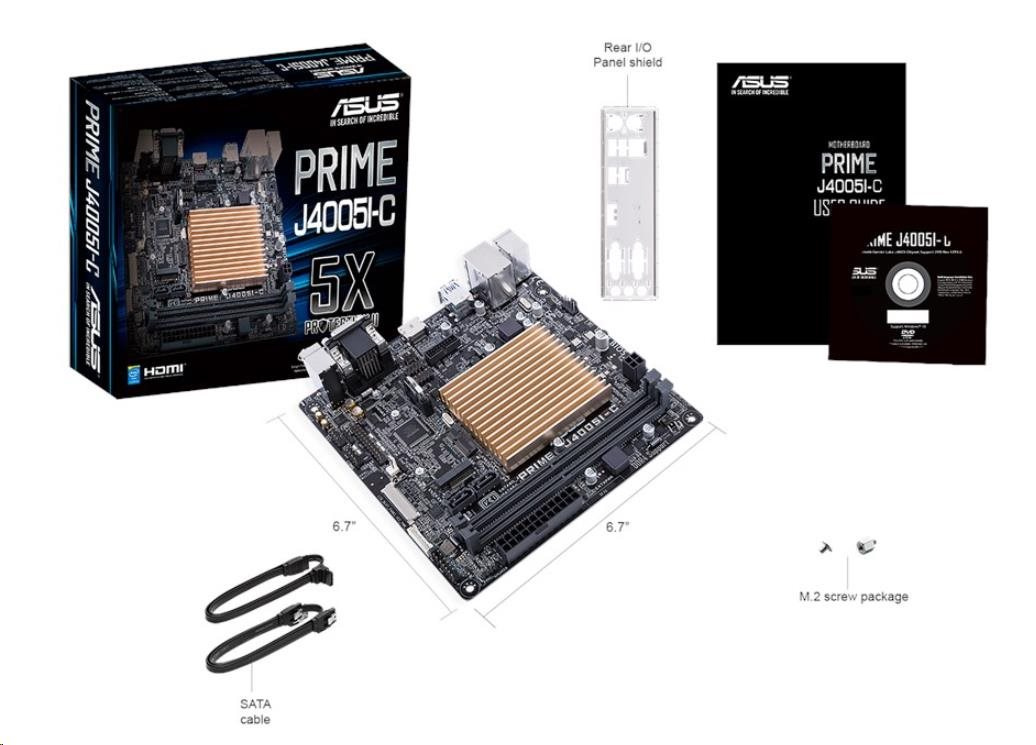

Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Form Factor Thin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note *1 We recommend that you use 8GB or less memory modules.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Integrovaný procesor
Formát základní desky
Mini-ITX
Chipset
Intel
PCI Express x16
0
Podpora RAID
Bez RAID podpory
COM port
Ano
LPT port
Ano
Pro procesory
Integrovaný procesor
Počet paměťových slotů
2
3.5mm Jack
Ano
LAN
1Gbit/s
DisplayPort
0
Bezdrátové připojení
bez
Led Header
Ne
TPM
Ne
PCI Express x1
0
USB 2
2
USB 3
4
USB C
0
PCI
0
M.2 slot
2
SATA 3
2
VGA
1
DVI
0
HDMI
1
