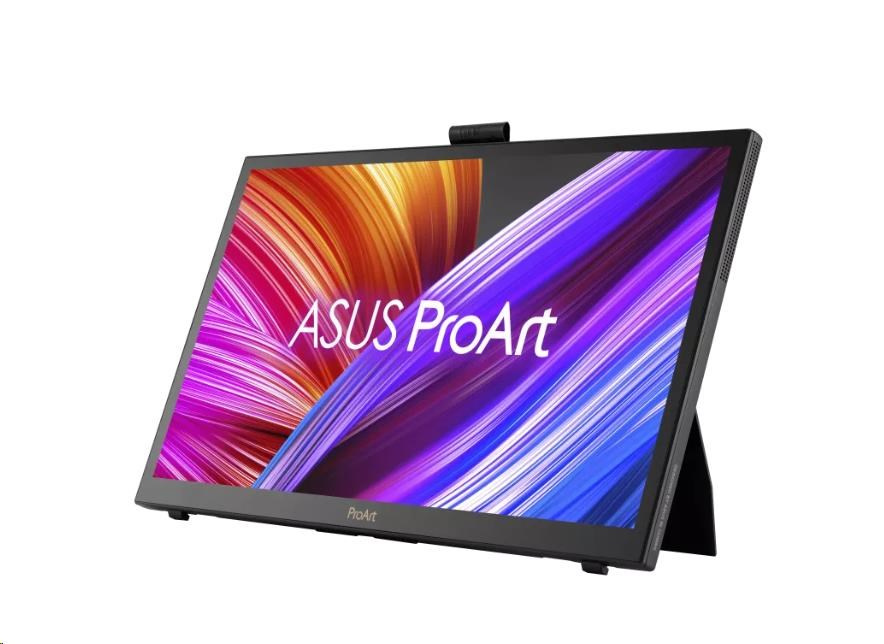

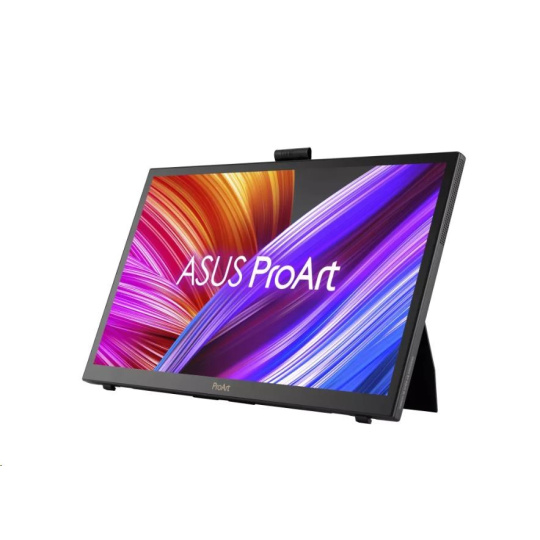

ASUS ProArt PA169CDV Pen Display
Display
Panel Size (inch) : 15.6
Pixels Per Inch (PPI) : 282
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 345.60 ×194.40 mm
Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR?10, H/V) : 178°/ 178°
Pixel Pitch : 0.09mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Brightness (HDR, Peak) : 500 cd/?
Brightness (Typ.) : 450cd/?
Contrast Ratio (HDR, Max) : 15,000:1
Contrast Ratio (Typ.) : 1200:1
Display Colors : 1073.7M (10 bit)
Response Time : 10ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
Touch : Yes, Projective Capacitive 10-point Touch
Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
Protection Glass : Yes
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ?E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
Low Blue Light : Yes
Audio Feature
Speaker : Yes(1Wx2)

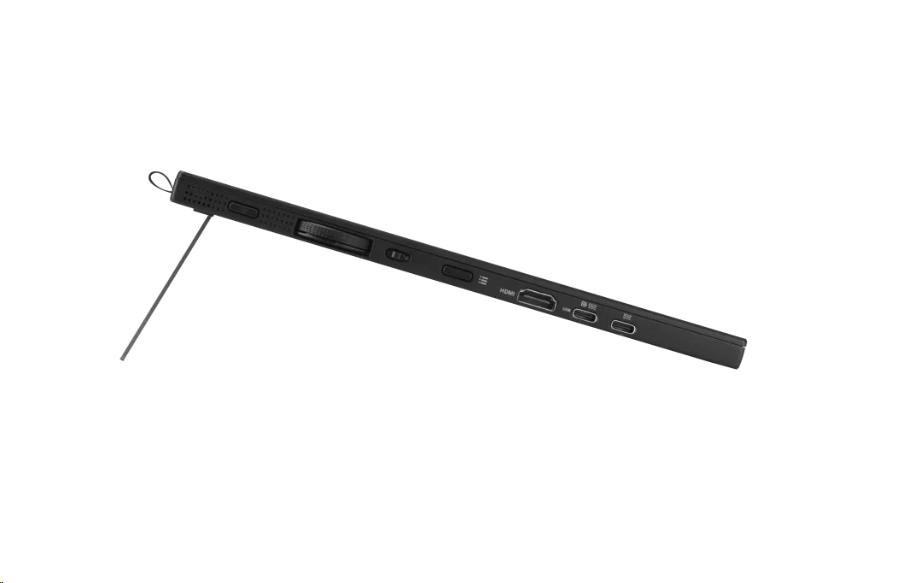

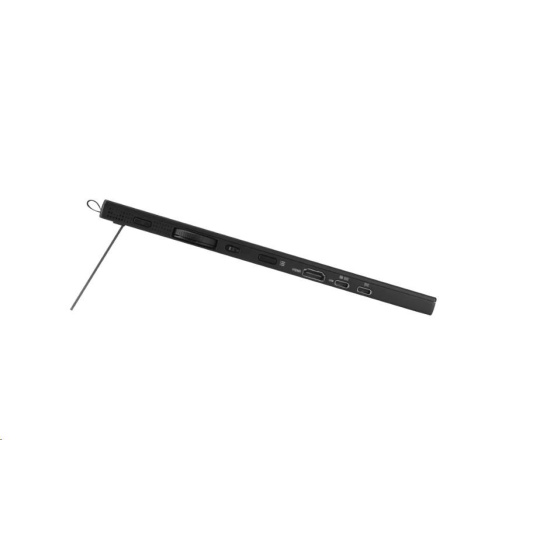

I/O Ports
USB-C x 1 (DP Alt Mode)
HDMI(v2.0) x 1
USB-C Power Delivery : 15W
Signal Frequency
Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V)
USB-C: 29~160 KHz (H) / 40~60Hz (V)
Power Consumption
Power Consumption : <15W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

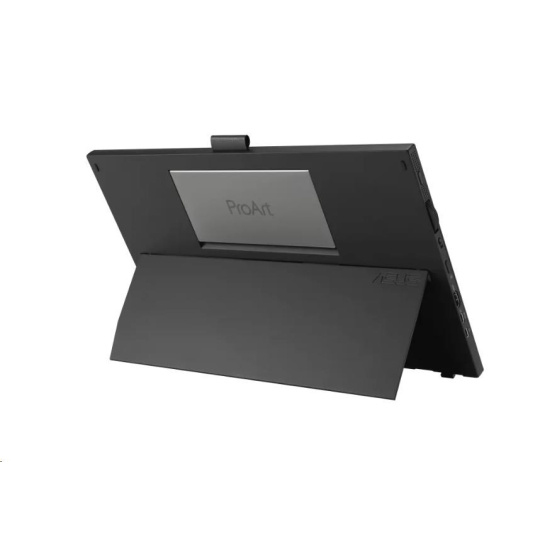

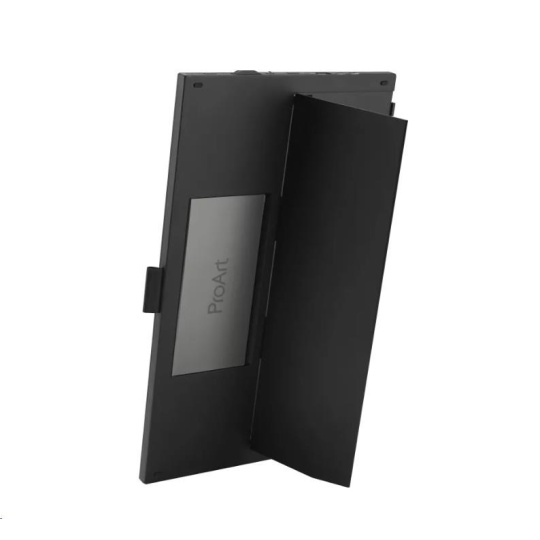

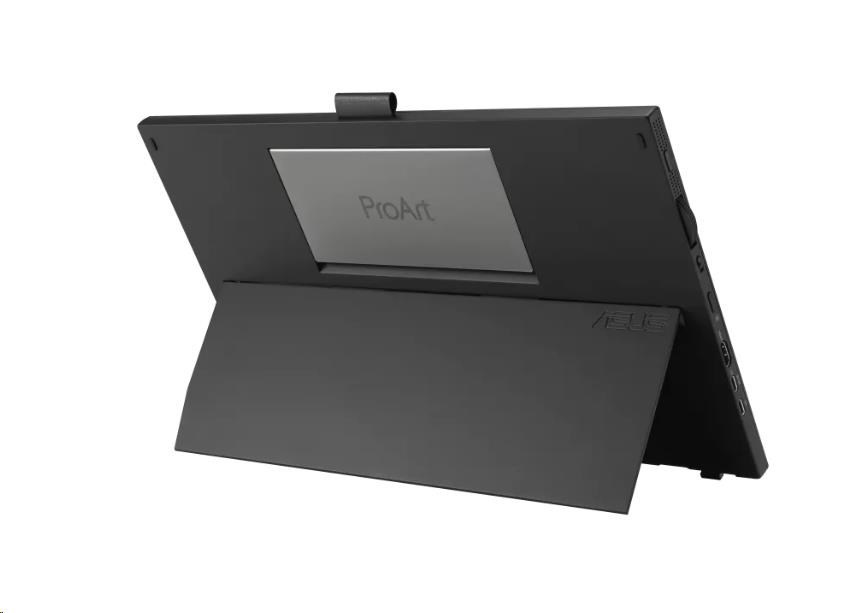

Mechanical Design

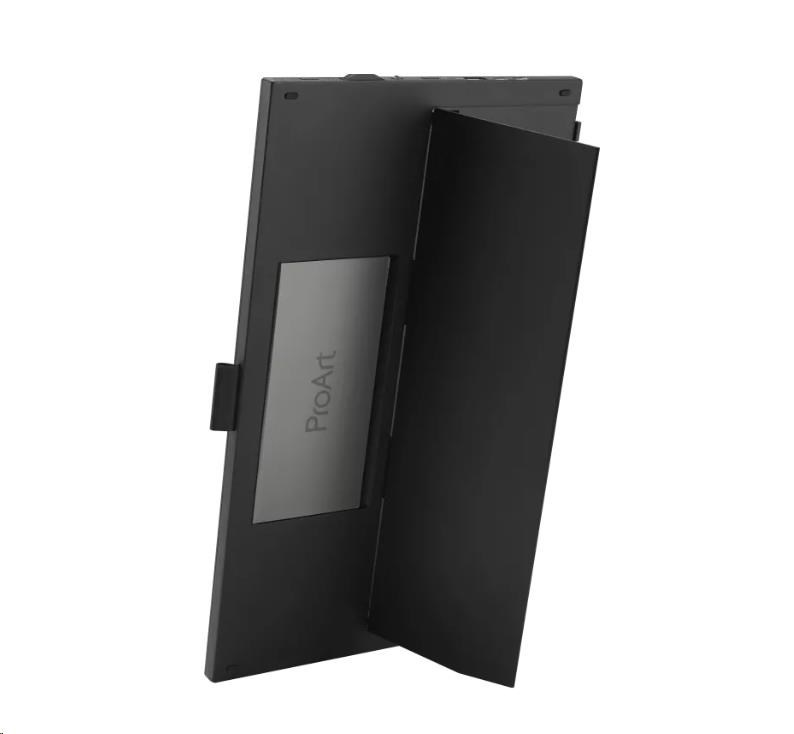

Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
Pivot : Yes (0° ~ 90° Clockwise)
1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47")
Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")
Weight (Esti.)
Net Weight : 1.07 kg (2.36 lbs)
Gross Weight : 2.95 kg (6.50 lbs)
Accessories (vary by regions)
Color pre-calibration report
HDMI cable
Power adapter

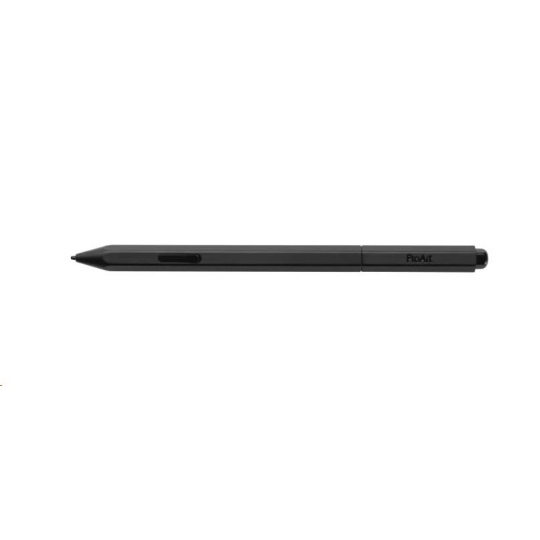

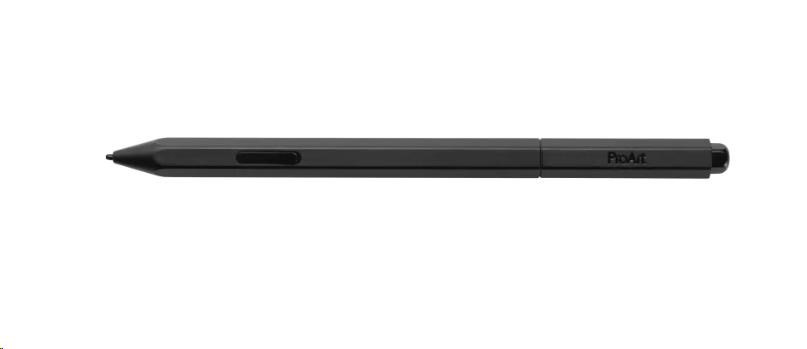

ProArt Pen (Wacom EMR)
ProArt Carry Bag
Quick start guide
USB-C cable
Warranty Card
Welcome Card
Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 400
Calman Verified
Pantone Validated
